                            Steel Roof Tile with Stone Chips Coated(Ripple Tile
                            • Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile
                            • Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile
                            • Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile
                            • Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile

                            Steel Roof Tile with Stone Chips Coated(Ripple Tile

                            Stone Coated Steel Roofing Tile (Ripple type HL1103)Stone coated steel roofing tiles is based on Al-Zn steel. The surface and back protective films, together with the alloy composed of Aluminum and Zinc, with natural stone, provides the usage of a long time span, which no less than 30 years.This ki......

                            Send Inquiry

                            Product Description

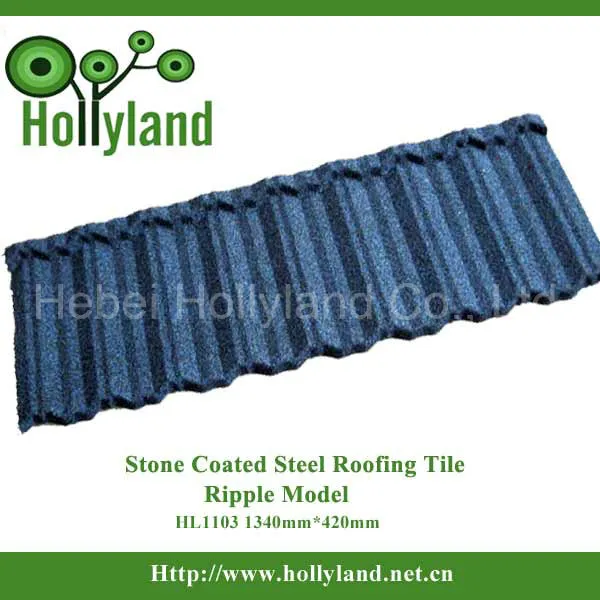

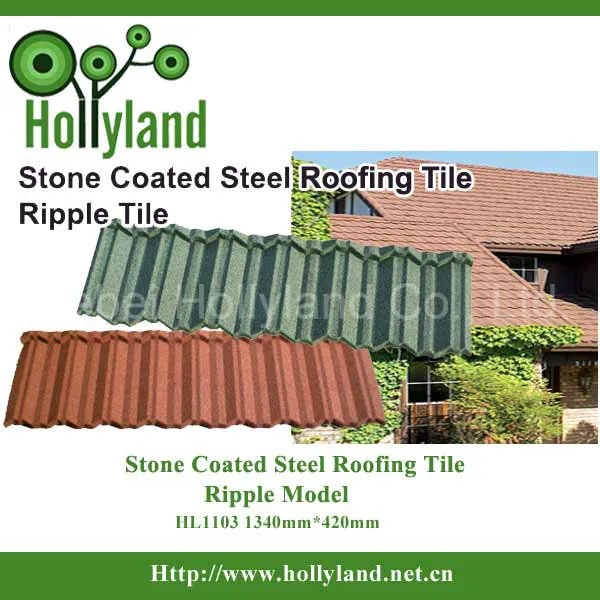

                            Stone Coated Steel Roofing Tile (Ripple type HL1103)
                            Steel Roof Tile with Stone Chips Coated(Ripple Tile
                            Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile

                            Stone coated steel roofing tiles is based on Al-Zn steel. The surface and back protective films, together with  the alloy composed of Aluminum and Zinc, with natural stone, provides the usage of a long time span, which no less than 30 years.

                            This kind of tiles could be widely used at all kinds of  buildings, such as residences, hotels, villas, horticultural structures, etc
                            .Steel Roof Tile with Stone Chips Coated(Ripple Tile
                            Parameters  Stone Coated Steel Roofing Tile
                            Name:Stone coated steel roofing tileColor:Black & Blue
                            Item No.:HL1103Color chat No.:HLC203
                            Usage:Roofing MaterialsBasic pannel Thickness:0.4mm
                            Style:RippleZinc Code:40g per Sqm
                            Size:1340x420mmPacking:Packed on Pallet
                            Height:35mmPacking Size:1.4x1.1x1.1cm
                            Exposure Size:1290x370mmPacking Quantity:600Pcs per Pallet
                            Pcs per Sqm:2.08Quantity Per 20GP:10500Pcs
                            Weight:2.8kg/PCuse time span:30years

                            Performance Terms of the Stone Coated Steel Roofing Tile:

                            A, This Roofing Tile is Economy - Energy saving, and this roofing tile is big acreage, and cutting down the physical distribution.

                            B, This Roofing Tile with Earthquake Resistance - cause of the Stone Coated Steel roofing tile is more lighter than the concrete tile.

                            C, This Roofing Tile with Fire Resistance - the main material of this tile are zinc-aluminium steel with the nature stone which have strong fire resistant.

                            D, This Roofing Tile with Construction Simple - light weight, easy to bend and cut, suitable for all kinds of building, and could repeat execution.

                            E, This Roofing Tile with Storm Resistance - and could reduce the noise in raining.

                            F, This Roofing Tile with Heavy Wind Resistance, cause we use the horizontal fixing method is resist to lift up in winding.

                            G, This Roofing Tile with Hail Resistance - the tile can resist cold, frozen and slip etc.

                            H, This Roofing Tile with Long Lifetime - the base board is zinc-aluminium which with the high corrosion resistant.

                            I, This Roofing Tile with Beautiful Appearance - with nature stone with varied colors.

                            Steel Roof Tile with Stone Chips Coated(Ripple Tile

                             Main  Physical  Testing
                            Test  projectTest  Results
                            Water  resistanceAfter  24h  test  without  anomalies
                            Heat  resistance   No  abnormalities  after  90 x5h  test
                            Low  temperature  resistance After  40  x24h  test  without  anomalies
                            Alkaline  resistanceAfter  48h  test  without  anomalies
                            Acid  resistanceAfter  48h  test  without  anomalies
                            Resistance  salt  sprayAfter  240h  test  without  anomalies
                            Cycle  of  freezing  and  thawingAfter  20  times  test  without  anomalies
                            Artificial  weatheringAfter  1000h  test  without  anomalies
                            Steel Roof Tile with Stone Chips Coated(Ripple TileSteel Roof Tile with Stone Chips Coated(Ripple Tile
