Laminas Termoacustica De PVC

Product Description

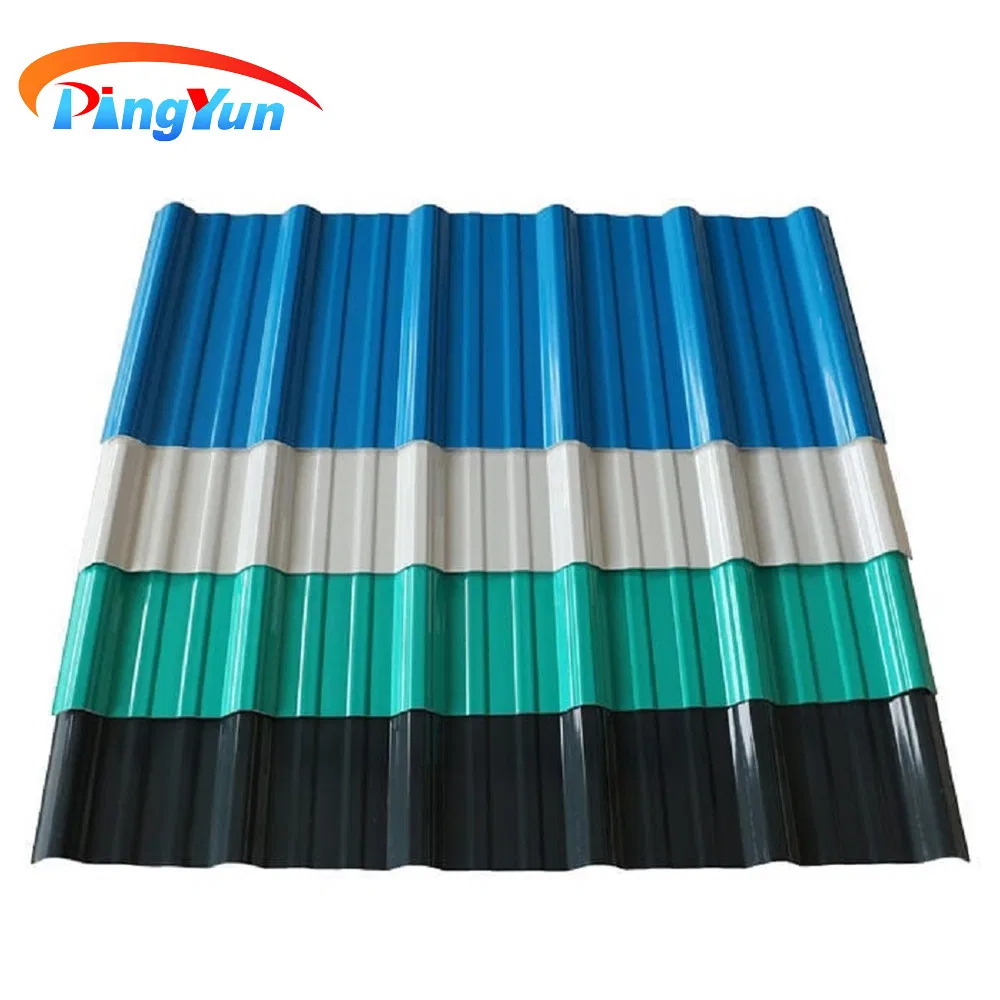

laminas termoacustica DE PVC

Are you confused when choosing what materials as your roofing ?

Firstly, you should know what effect you want.

Secondly, the cost comparison of various materials.

Finally, choose the most cost-effective material.

Material	laminas termoacustica DE PVC	PU sandwich panel	PPGI steel roof	Aluminium	Fiber cement
Color stable	20-25 years	5-8 years	5-8 years	15 years	10 years
Warranty	20 years	15 years	10 years	15 years	10 years
Anti-rust	Good	Bad	Bad	Good	Good
Thermal conductivity	Good: 0.13 W/(m·K)	Good: 0.09 W/(m·K)	Bad: 15 W/(m·K)	Bad: 20 W/(m·K)	Good: 0.11 W/(m·K)
Impact resist	Good	Good	Good	Good	Bad
Soundproof	Excellent	Excellent	Bad	Bad	Excellent
Thickness	2.0mm	35mm	0.5mm	1mm	6mm
Weight	3.9kg/m2	12kg/m2	5kg/m2	5kg/m2	12kg/m2
Quantity/40HQ	7000m2	1000m2	5000m2	5000m2	2400m2
Price	Middle	Higher	Middle	Higher	Lower

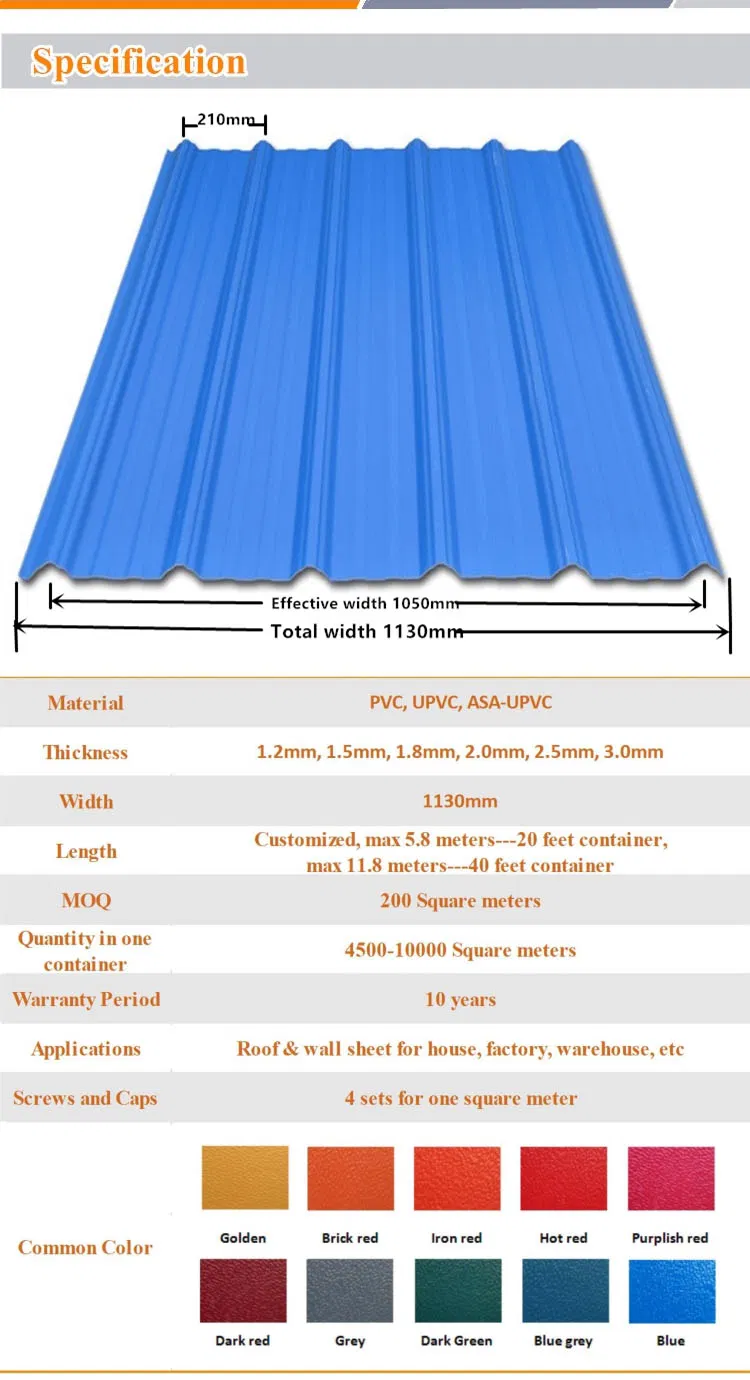

3 Layers Corrugated laminas termoacustica DE PVC specifications

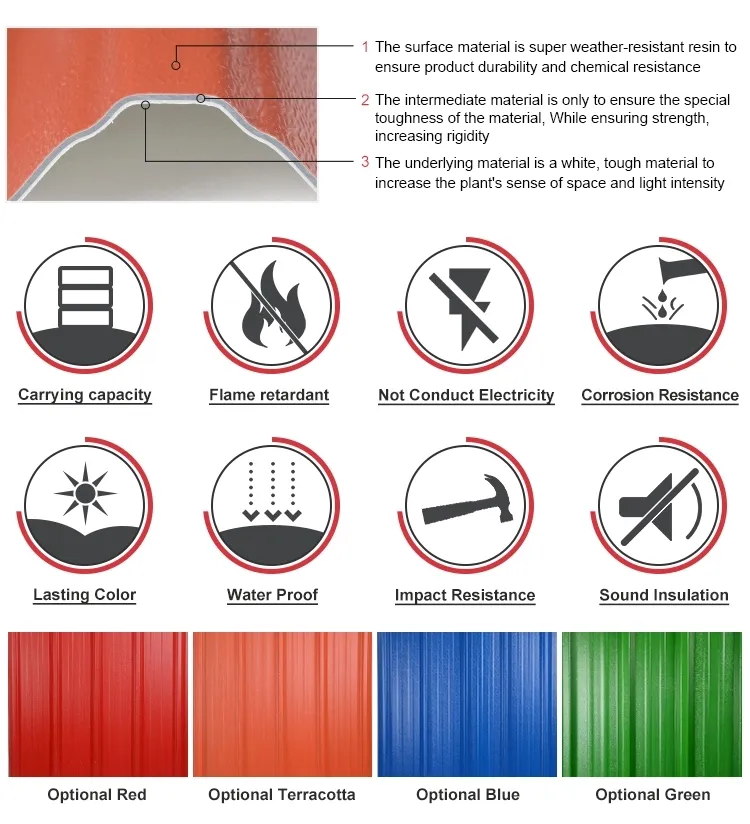

Why Choose 3 Layers laminas termoacustica DE PVC ?

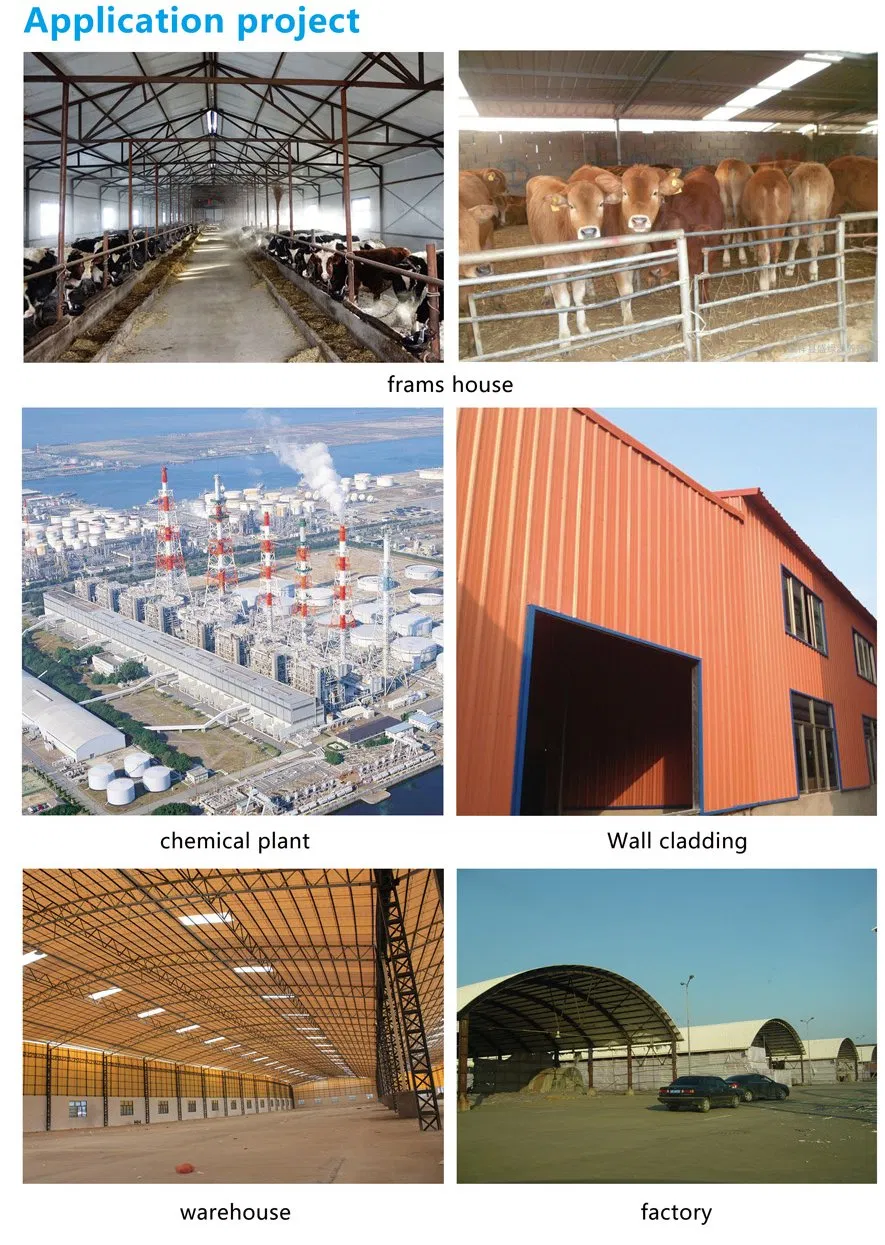

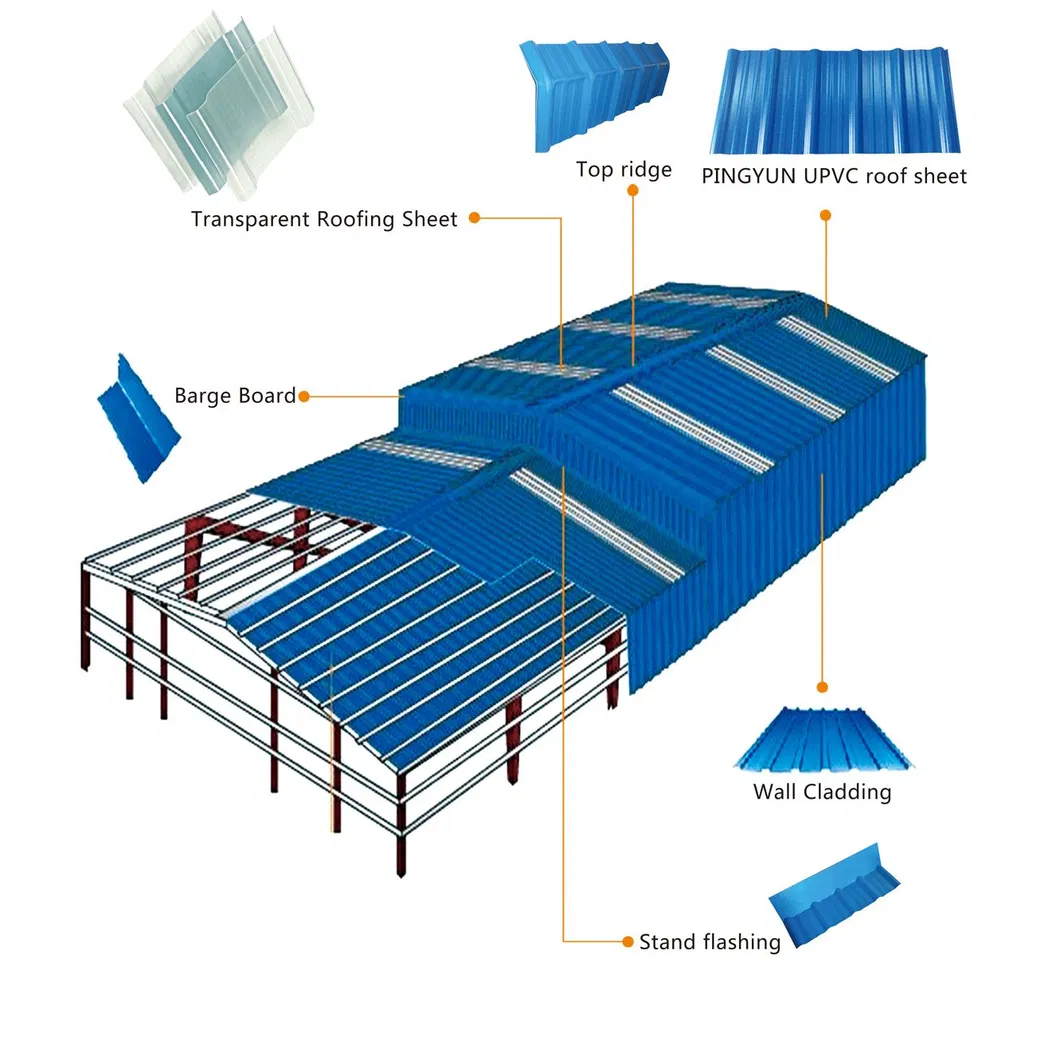

3 Layers Corrugated laminas termoacustica DE PVC Project Show

Laminas Termoacustica De PVC

Insulation 3 Layers laminas termoacustica DE PVC Technical Data

Heat-Resistance	(72°c,6h)no deformatio, no viscousness	High-low temperature change	±0.11%
Cold-Resistance	(-40 °c,6h) no crack in suirface	Fire-protection	Class B1 Retardant Building Materials
Bending capability	25mm	Vicat softening temperature	≥75°c
Flexural load	800N, no crack	Water absorption rate	≤0.05%
Fleural strength	72MPa	Nail force	≥46N
Tensile strength	30MPa	Chemical resistance properties	No reaction
