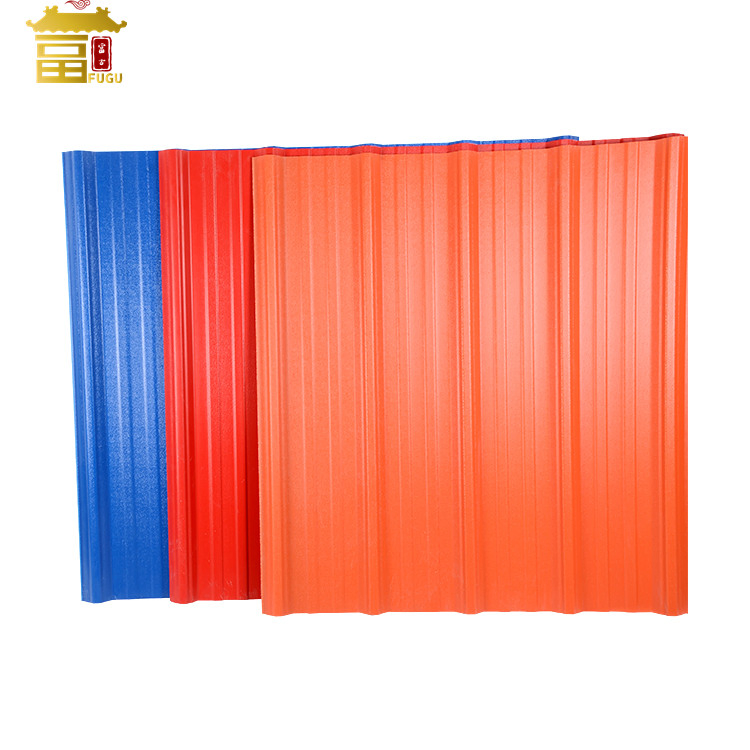

Excellent Anti-Load Performance Roofing Material PVC Roofing Sheet Blue Home Roof Tiles
Excellent Anti-load Performance Roofing Material PVC Roofing Sheet Blue Home Roof Tiles Product DescriptionPVC Roofing Sheet use Super ultra weather ability engineering resin ASA for the surface material by CO-extrusion composite technology, even exposure to the sun UV, moisture, heat, cold, and sho......
Send Inquiry
Product Description

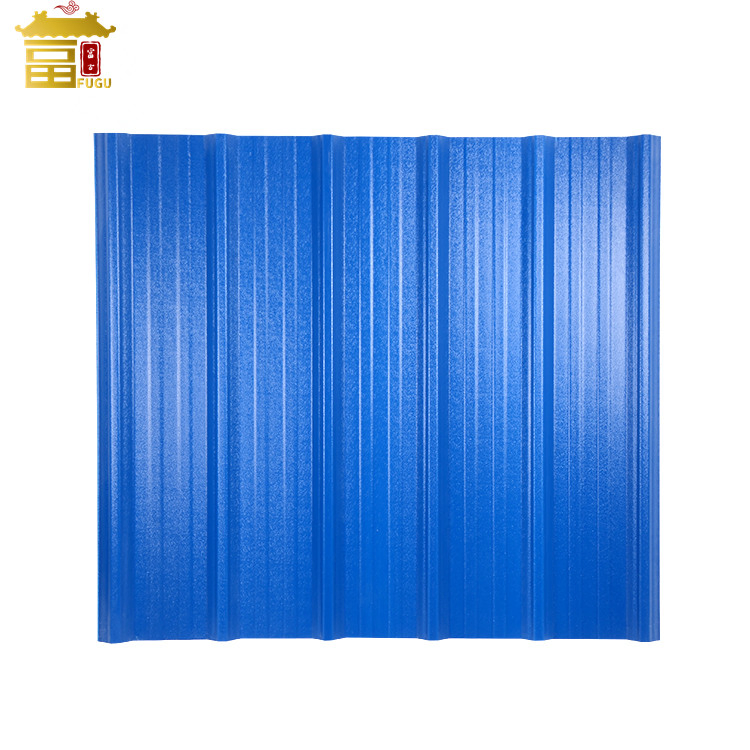

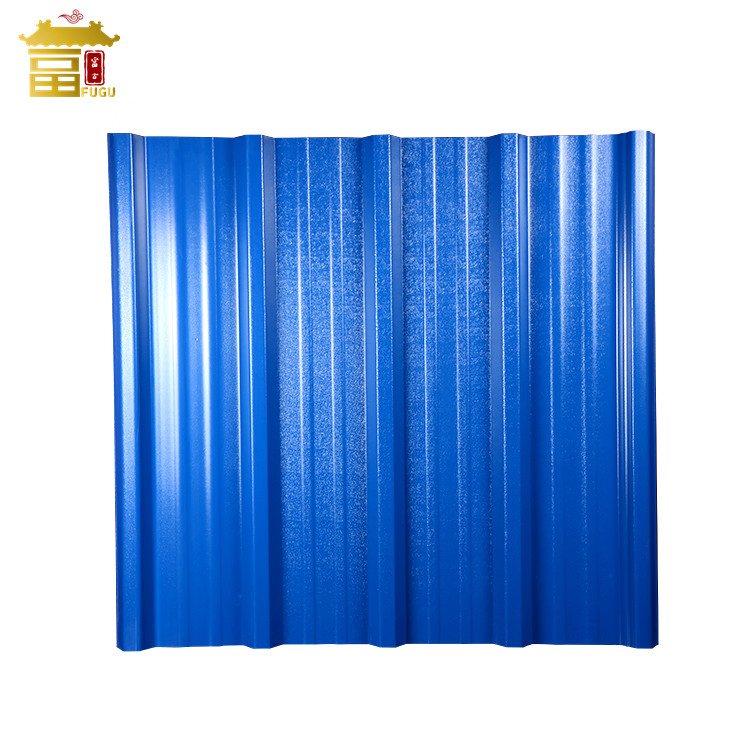

Excellent Anti-load Performance Roofing Material PVC Roofing Sheet Blue Home Roof Tiles
Product Description
PVC Roofing Sheet use Super ultra weather ability engineering resin ASA for the surface material by CO-extrusion composite technology, even exposure to the sun UV, moisture, heat, cold, and shock for long time, it is still able to keep its color stable in the natural environment.
Color White, blue, green, beige,terra-cotta grey or customized
Thickness 1.5mm,1.8mm,2.0mm,2.5mm,3.0mm
Length 5700mm , 11700mm or customized

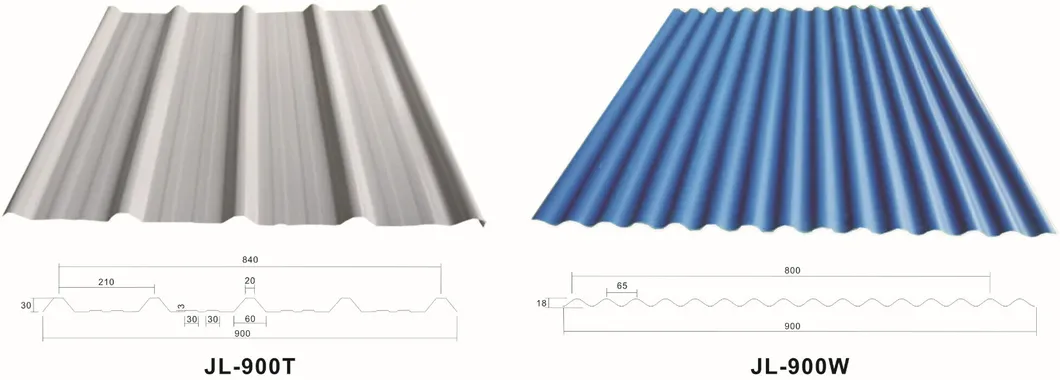

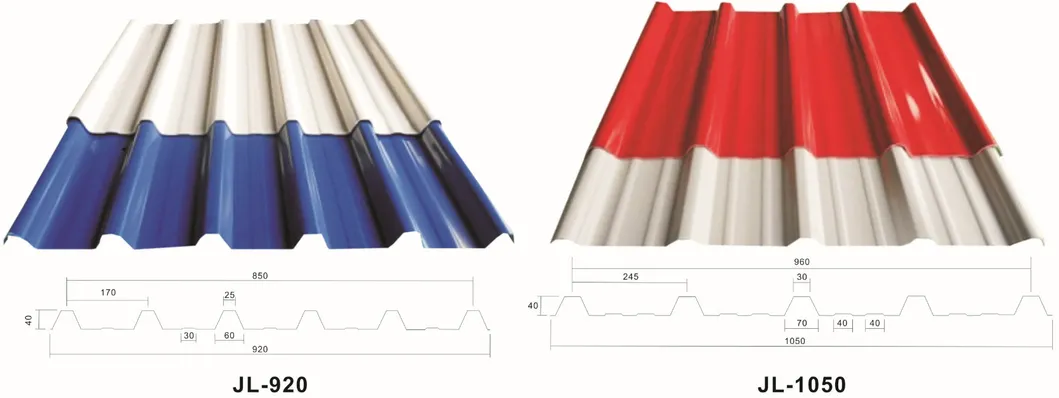

Overall Width 900mm, 920mm,1130mm, 1050mm or customized
Effective Width 800mm,840mm,850mm,960mm,1050mm
Purlin Spacing 600~1000mm
Quality Guarantee 10 years
Application
1) All kinds of roofs, such as steel structure roof, planted roof etc.
2) Underground engineering, such as building basement, subways, tunnels, air raid shelter, etc.
3) Other projects like artificial lake, dam, water reservoir, grain storehouse, etc.
Product Description
PVC Roofing Sheet use Super ultra weather ability engineering resin ASA for the surface material by CO-extrusion composite technology, even exposure to the sun UV, moisture, heat, cold, and shock for long time, it is still able to keep its color stable in the natural environment.
Color White, blue, green, beige,terra-cotta grey or customized
Thickness 1.5mm,1.8mm,2.0mm,2.5mm,3.0mm
Length 5700mm , 11700mm or customized
Overall Width 900mm, 920mm,1130mm, 1050mm or customized
Effective Width 800mm,840mm,850mm,960mm,1050mm
Purlin Spacing 600~1000mm
Quality Guarantee 10 years
Application chemical factories, warehouses, prefab houses, farm markets and etc

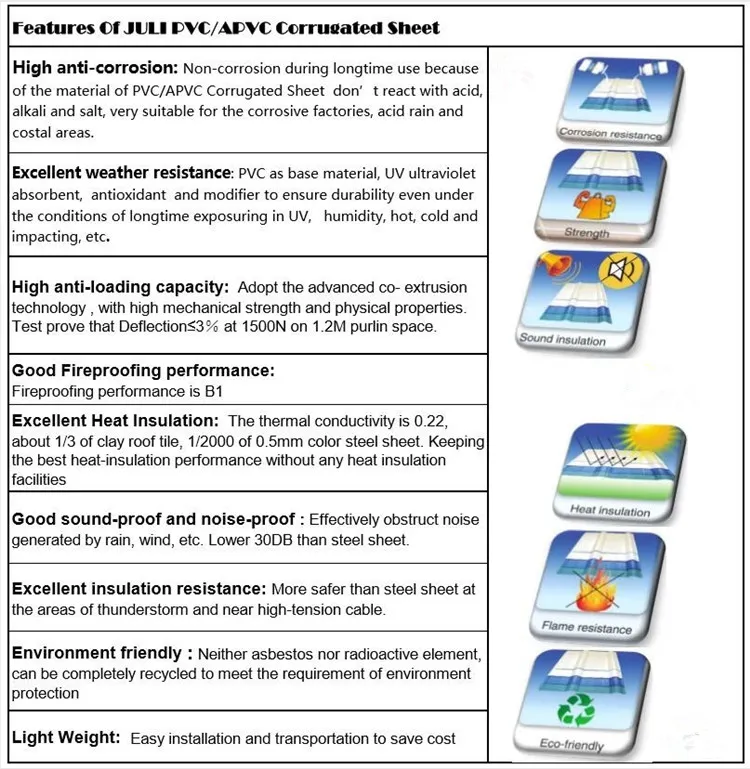

Product Feature
Heat Insulated 3 Layer PVC Roof Tile, manufactured based on 3 layer co-extrusion technology by one-off processing, is an ideal building material for construction projects with heat insulation requirement. Below is the distinctive features for each layer material.
Heat Insulated 3 Layer PVC Roof Tile, manufactured based on 3 layer co-extrusion technology by one-off processing, is an ideal building material for construction projects with heat insulation requirement. Below is the distinctive features for each layer material.

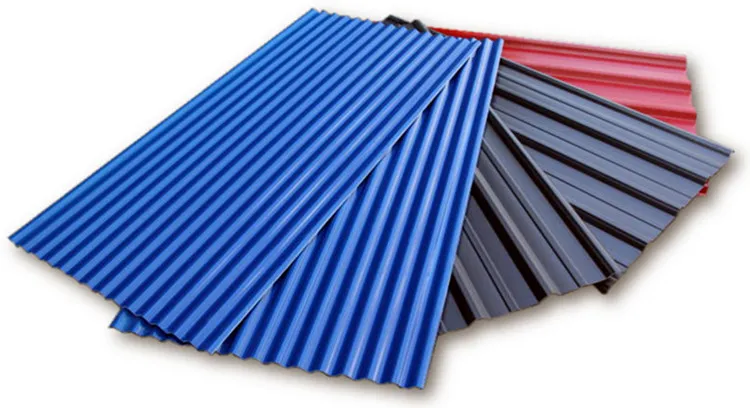

Color

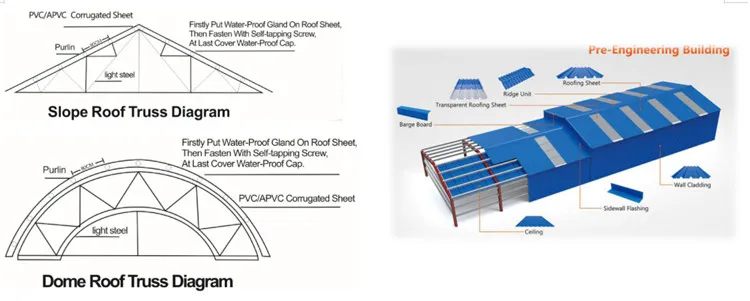

Installation Of FUGU 3 Layer PVC Roof Tile
* Steel or wood purlin is better, purlins should be straight without deformation and two purlins must be in parallel with same distance.
* Purlin Span: 2mm<800mm, 3.0mm<1000mm
* Integral lapjoint at lateral side and lap-joint aroud 200mm at vertical side
* drill holebefore fix self-drilling screws. Consider expansion and contraction, the aperture have to be 30% at least larger than screw diameter, the screw must not be over-tightened.
* The screws and fixing accessories must be not less than 4sets/m2 to ensure the roof sheet structure have enough strong against strong wind.
* At the overlap, roof sheets' placing order and paving should considering about the local prevailing wind
* The exposed side at lap-joint should be on leeward side, reversing to the prevailing wind direction.
Installation Of FUGU 3 Layer PVC Roof Tile
* Steel or wood purlin is better, purlins should be straight without deformation and two purlins must be in parallel with same distance.
* Purlin Span: 2mm<800mm, 3.0mm<1000mm
* Integral lapjoint at lateral side and lap-joint aroud 200mm at vertical side
* drill holebefore fix self-drilling screws. Consider expansion and contraction, the aperture have to be 30% at least larger than screw diameter, the screw must not be over-tightened.
* The screws and fixing accessories must be not less than 4sets/m2 to ensure the roof sheet structure have enough strong against strong wind.
* At the overlap, roof sheets' placing order and paving should considering about the local prevailing wind
* The exposed side at lap-joint should be on leeward side, reversing to the prevailing wind direction.
Company Profile
Hefei FUGU Building Material Co. Ltd is located at Hefei City which is the capital of Anhui province, with the production site at Hefei and Wuhu city, covering an area of 21400 square meters, as the professional manufacturer specialized in producing and marketing plastic septic tanks , certified by ISO9001 Quality Management System Certificate, ISO14001 environmental Management System and OHSAS18001 Conformity of Occupational Health and Safety Management System.
And roof tiles since 1996. after years 'practice and experience accumulation, the annual production capacity of Synthetic Resin Roof Tiles is more than 5,000,000 Square Meter, PVC/APVC Corrugated Sheet is more than 5,000,00 Square Meter,Anti-corrosive Polyester Sheet is more than 3,000,000M, Anti-corrosive Polyester Purlin is more than1,200,000 Square Meter, well-known by the worldwide gradually.
And roof tiles since 1996. after years 'practice and experience accumulation, the annual production capacity of Synthetic Resin Roof Tiles is more than 5,000,000 Square Meter, PVC/APVC Corrugated Sheet is more than 5,000,00 Square Meter,Anti-corrosive Polyester Sheet is more than 3,000,000M, Anti-corrosive Polyester Purlin is more than1,200,000 Square Meter, well-known by the worldwide gradually.

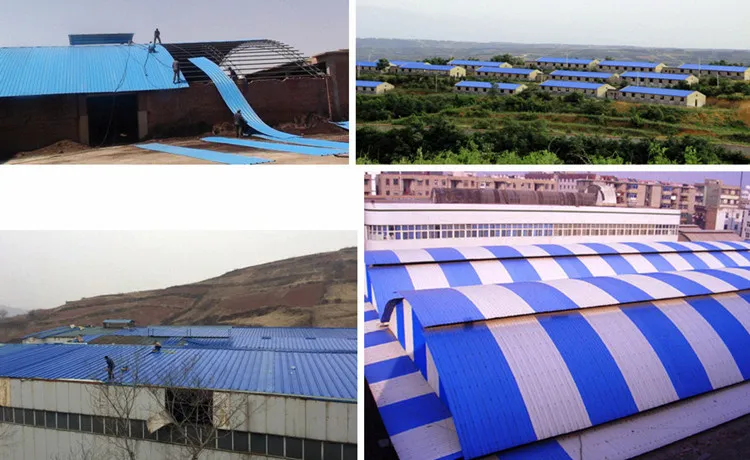

Application
1) All kinds of roofs, such as steel structure roof, planted roof etc.
2) Underground engineering, such as building basement, subways, tunnels, air raid shelter, etc.
3) Other projects like artificial lake, dam, water reservoir, grain storehouse, etc.
