Corrugated Plastic PVC Building Roofing
CodePVC Trapezoidal 1088Surface material PMMA coated,color stable for 20 yearsWidth1088mmCover width1008mmThickness2.0mm,2.5mm,3.0mmLengthCustomizedColors White,Blue,Brick red,Gray,also could be customizedPackingPalletizing or PE bag according lengthUsageHousing,factory,warehouse,shed,etc. Feature......
Send Inquiry
Product Description
| Code | PVC Trapezoidal 1088 | ||
| Surface material | PMMA coated,color stable for 20 years | ||
| Width | 1088mm | ||
| Cover width | 1008mm | ||
| Thickness | 2.0mm,2.5mm,3.0mm | ||
| Length | Customized | ||
| Colors | White,Blue,Brick red,Gray,also could be customized | ||
| Packing | Palletizing or PE bag according length | ||
| Usage | Housing,factory,warehouse,shed,etc. | ||
Features
- Corrosion resistance
- Color lasting
- Fire proof grade B1
- Sound absorption and heat insulation
- Environment friendly and energy saving
- Load bearing
- Good water resistance
- Light weight building materials
- Easy to install
Install
Easier and faster installation than traditional ceramic tile,and there is no break during installation
Clients can get installation Video when once purchase product.
Once time install,no maintenance,save time,energy and money.
Packing and Shipping
Packaging:Product can be packed with pallets, longer product can be packed with PE bags.
1.Pallet packaing, tight and keeps the products in safety condition, easy to load and upload.
2.PE Bags Packaging: 4-5 pcs per bag, keep your products safe and no scratch, with metal supporting structure in the container, roof tiles are stable during transportation.
For 40'GP, length no longer than 11800mm, for 20'GP, length no longer than 5800mm.

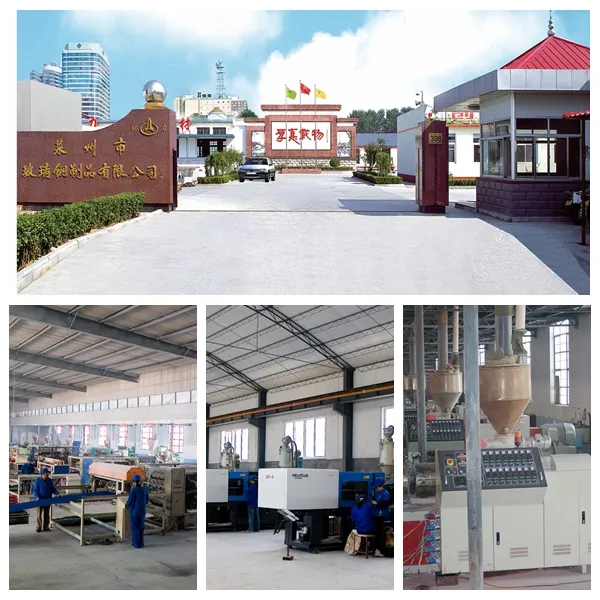

Company information
Founded in 1992, Laizhou Jieli Industrial Co., Ltd. is one 'ISO900:2008' certified company, which has specialized in the research, development, manufacture and supply of roofing tiles for over 20 years.
Our roofing tiles are currently exported worldwide, in particular to Latin America, Europe, Middle East, Africa, West and South-east Asia and Australasia.
FAQ
1. What machine do you use to cut the roofing?
Using portable cutting machine.
2.What machine do you use to install the screws?
Portable electric drill.
3. How to install the roofing?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4.What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 40degree to 72 degree
5.What color can you produce?
White, blue, brick red, green, grey etc. Customers can also provide sample color to us
6.What is difference between PVC sheet and UPVC sheet?
-PVC sheet is produced in one layer. UPVC sheet is produced in three layers. There is insulation layer in middle.
-UPVC sheet resist heat and sound, which better than PVC sheet.
-The cost of UPVC sheet is a little higher than PVC sheet.
