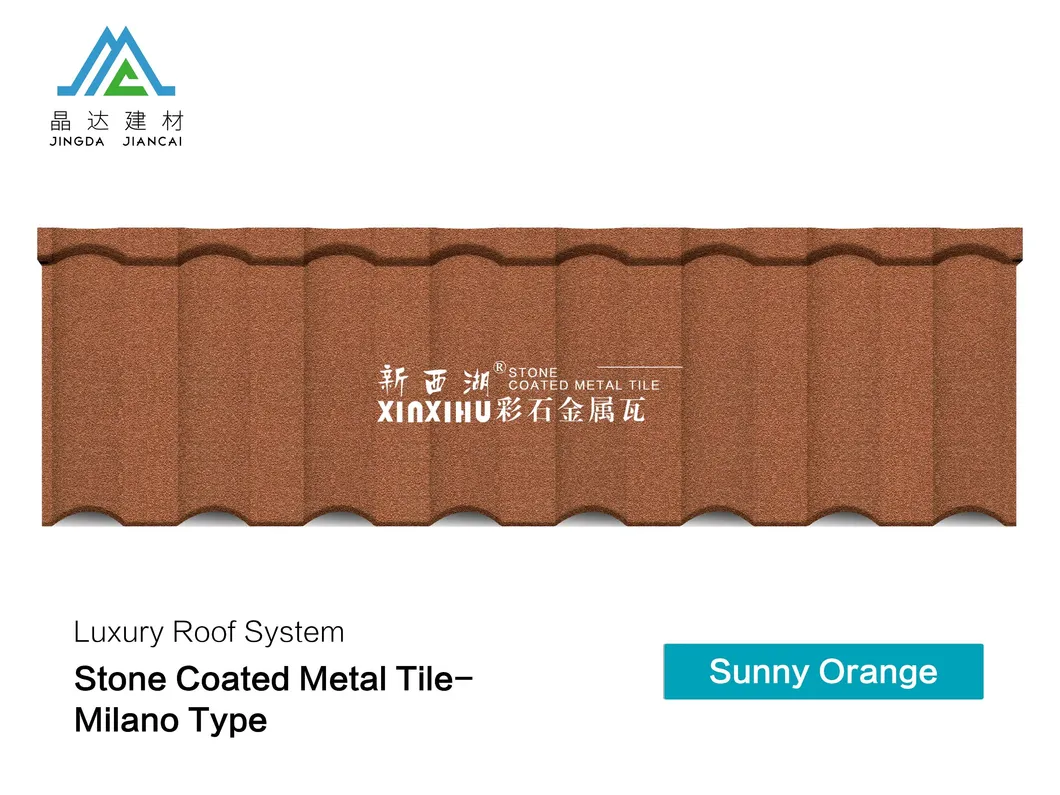

1340 *420mm Milano Stone Chip Coated Metal Roof Tiles

Product Description

Jingda Stone Coated Metal Roofing Tiles

JINGDA company combines New Zealand technology innovation with advanced auto-matic production facilities aims to produce world-class metal roof tiles.

About us:
1. Established in 2002, Jingda is a roofing pioneer manufacturer with 19 years' rich experience in Roofing&Waterproofing categories.
2. The largest roofing tiles production base in China. ( Asphalt shingles + Stone coated metal roof tiles)
3. National High-tech enterprise with National standard lab in house. (A complete set of tests can be carried out in house)
4. The outstanding vendor list of Shanghai residential repair engineerings 2019/2020. ( The only one from Zhejiang Province)

Our mission: Provide the strongest protection for roofs around the world!

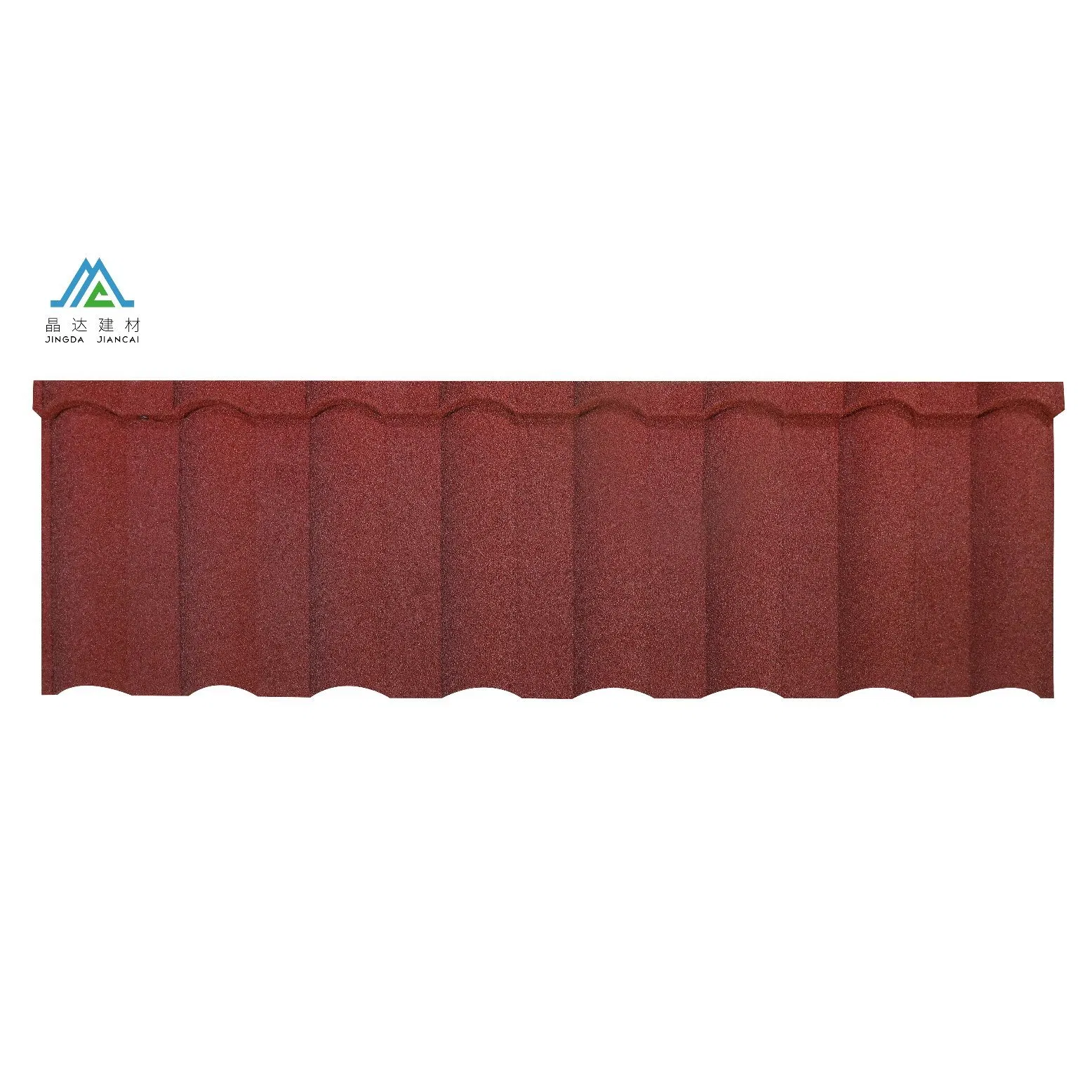

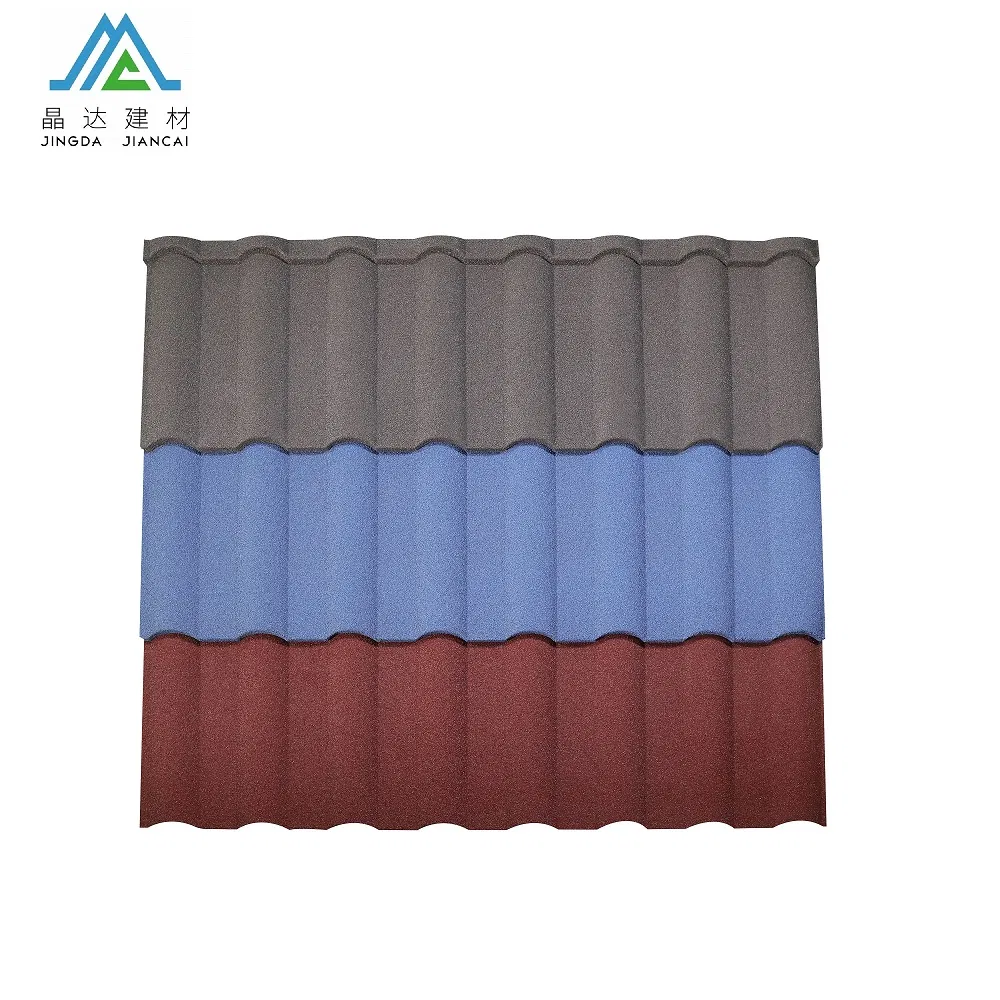

1340*420mm Milano Stone Chip Coated Metal Roof Tiles

Product Name	Color stone coated metal roof tiles
Material	Galvalume steel (Al-Zn plated steel sheet), Ceramic sintered granules, Acrylic resin adhesives.
Specification	1340x420mm (LxW)
Installed Exposure	1280x370mm (LxW)
Thickness	0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm Optional
Coverage Area	0.473 square meters/Pcs
Pavement Qty	2.1 pcs/ square meters
Color	16 colors or customized
Weight	2.2-3.2 kg/pcs
Certificate	ISO9001, CE, ASTM Etc.
Applications	Residential, Villa, Commercial building, Apartment, Other construction roofs...

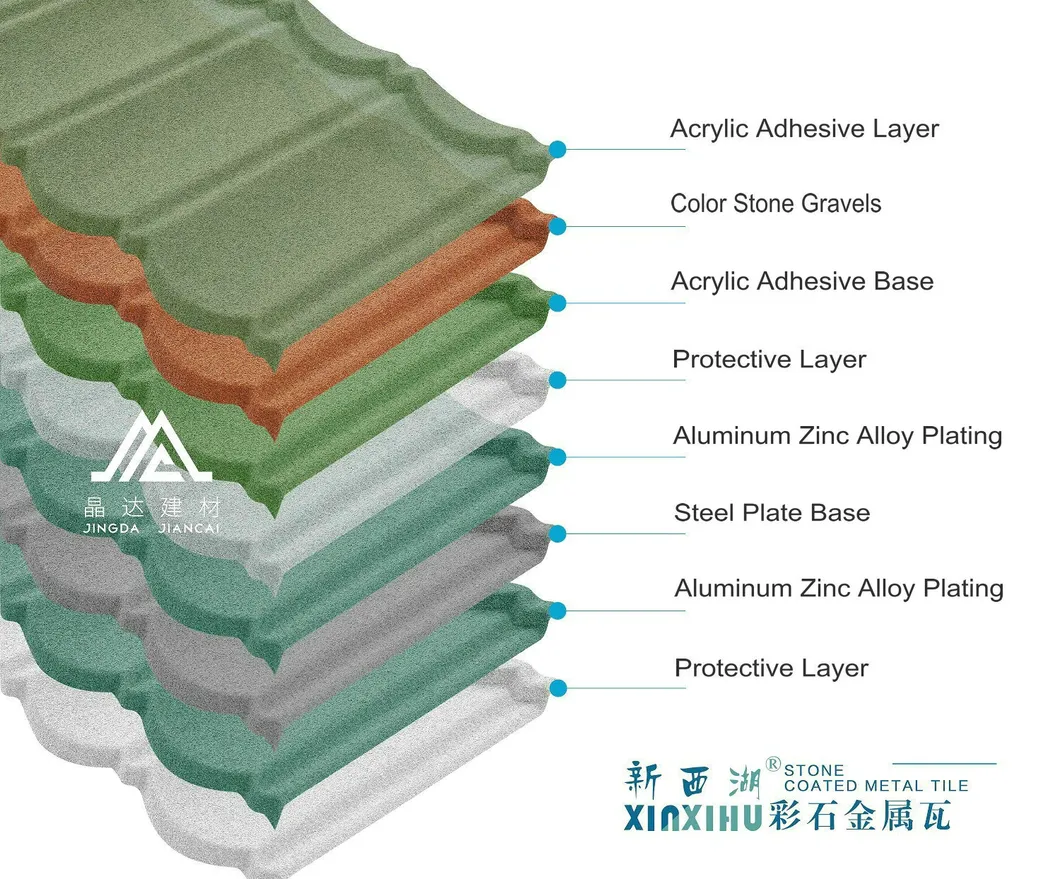

Color stone coated metal roof tiles are made of aluminum-zinc plated steel sheet as the substrate with fingerprint resistant coating, covered by color stone granules and acrylic resin.

1. Aluminum-zinc steel sheet (PPGL) is plated with 55% aluminum, 43.4% zinc and 1.6% silicon as protection coating , which with much better performance than normal Zinc galvanized steel sheet (PPGI) on anti-corrosion, anti-oxidant, heat reflective, heat resistance, economy etc.

2. Above the aluminum-zinc plating layer is fingerprint coating. It makes better appearance and also increase lifespan of the tiles.

3. Colored stone granules is the surface decoration layer of metal tiles as well as the protection layer. It is made of basalt particles which treated by high-temperature sintered ceramic process. The stone chips has more than 16 basic colors for optional and customized is available as well. It creates an excellent aesthetic appearance on your roofs and with great protection on your buildings as well. (Withstand ultraviolet radiation, reduce noise caused by rain water)

4. Acrylic resin is the key bonding material between the steel sheet and color stone chips, and also serves as a protective layer on the surface to prevent rainwater from leaking into junction gaps, and extend the life span of color gravels.

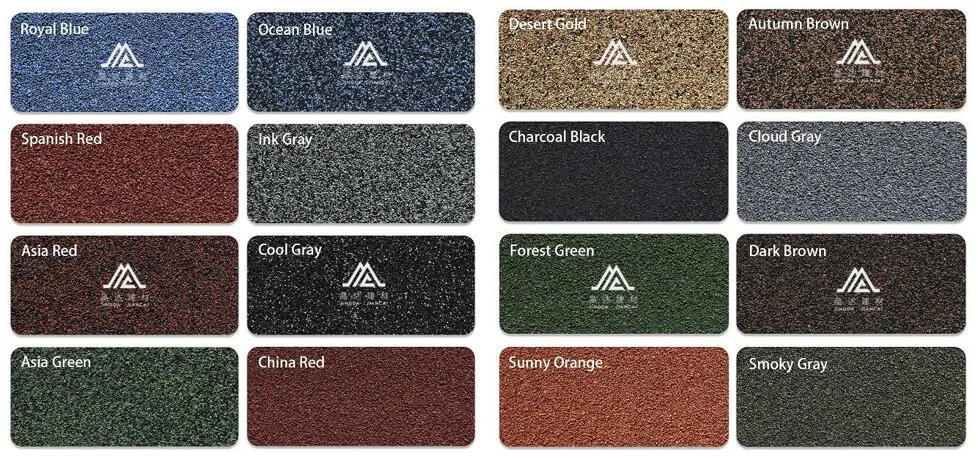

Color Book

Product Features

1.Excellent Durability
The scientific design,high quality aluminum-zinc steel and natural stone chip coating cause stone coated roofing tile have superior performance.

2.Light weight and easy to install
The weight of stone coated metal roofing tile is only 1/6 of the traditional tile,only 5.20-6.40kgs/sq.m. It is easy to transport,store and convenient to install.

3.Economic
Because it is light weight but big size, so it usually just takes 3-5 days for 2 workers to finish all the installation for a common residence and related charge of shipment and installation be reduced sharply.

4.Beautiful apperance
The roof is one of the key point for building apperance.The beautiful colors of sintered stone and the noble design of stone coated metal roofing tile make the building more stylish and tasteful.

5.ECO-Friendly and recyclability
Steel is one of the few truly green building materials on the market, because it is 100% recyclable.

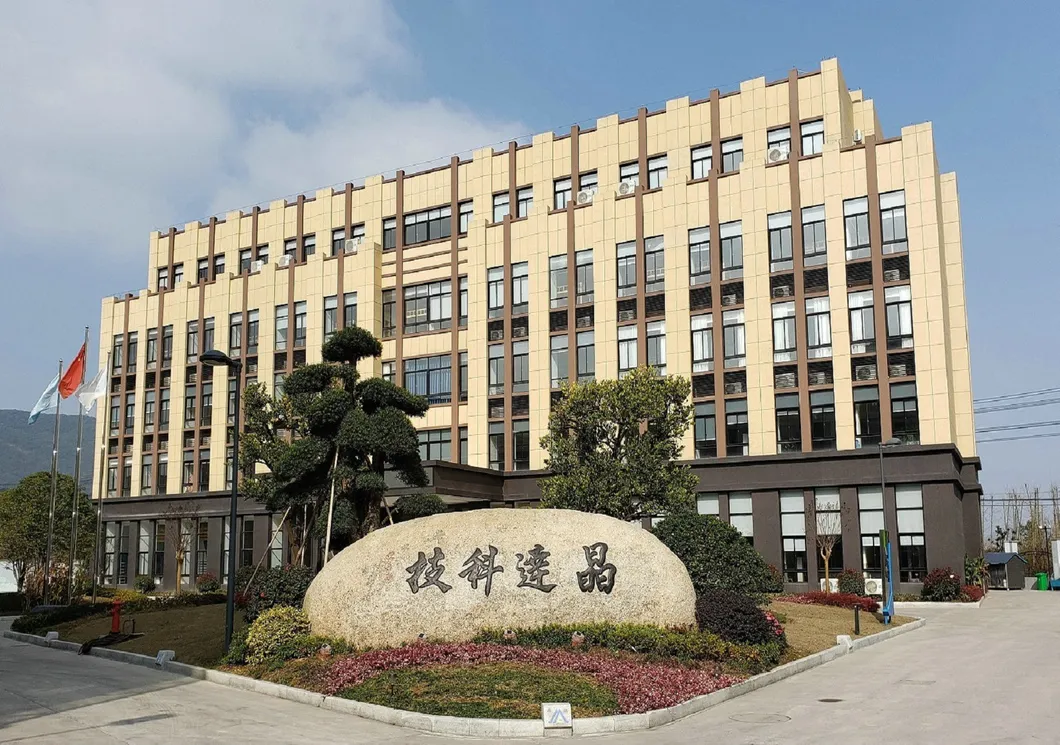

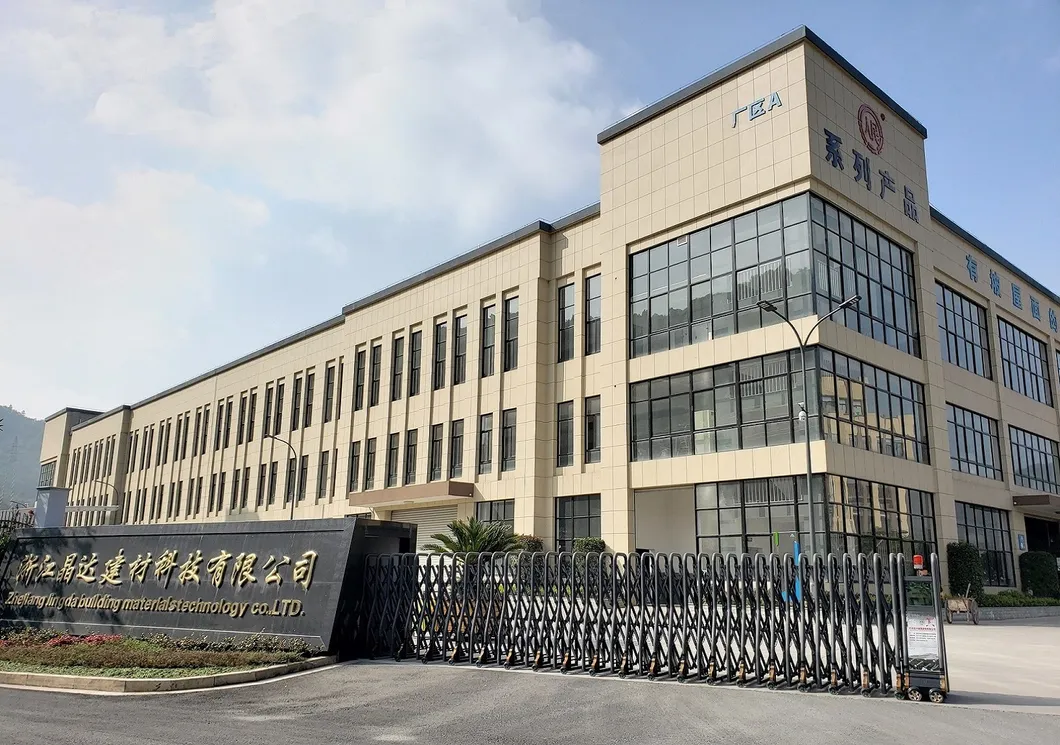

Company Photos

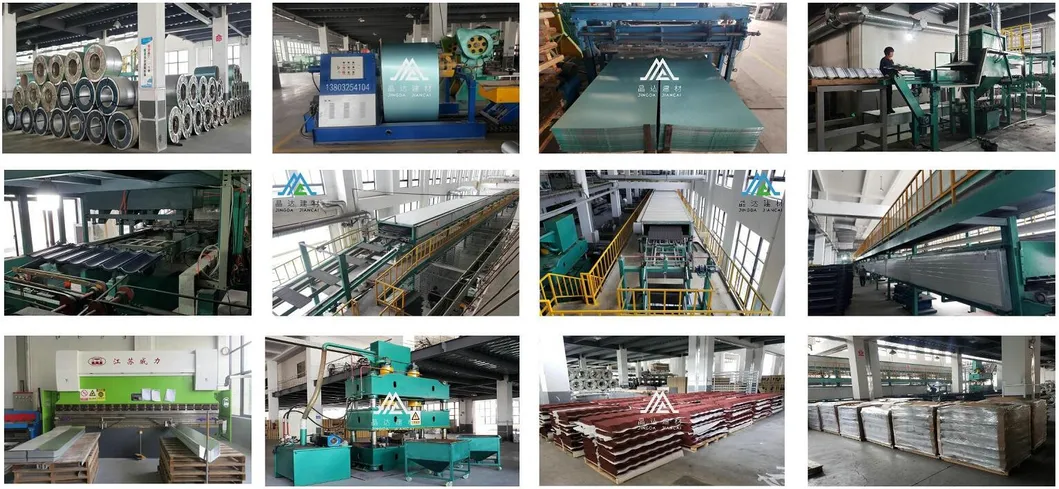

Production Lines:

1. Jingda High end metal tiles using "Yieh Phui" Aluzinc Steel Coil which represents Top end quality in the market.
2. Our production line (Most advanced double deck facility) with technic from New Zealand ensure the stable quality products.
3. Rigorous quality control is performed for the whole process from raw materials to finished products.
4. One stop purchasing solution covering Stone coated metal roof tiles, Asphalt shingles, Waterproof materials, Roof gutters etc.
5. We offer excellent outsourcing service support if you need to purchase other items from China.

1340*420mm Milano Stone Chip Coated Metal Roof Tiles

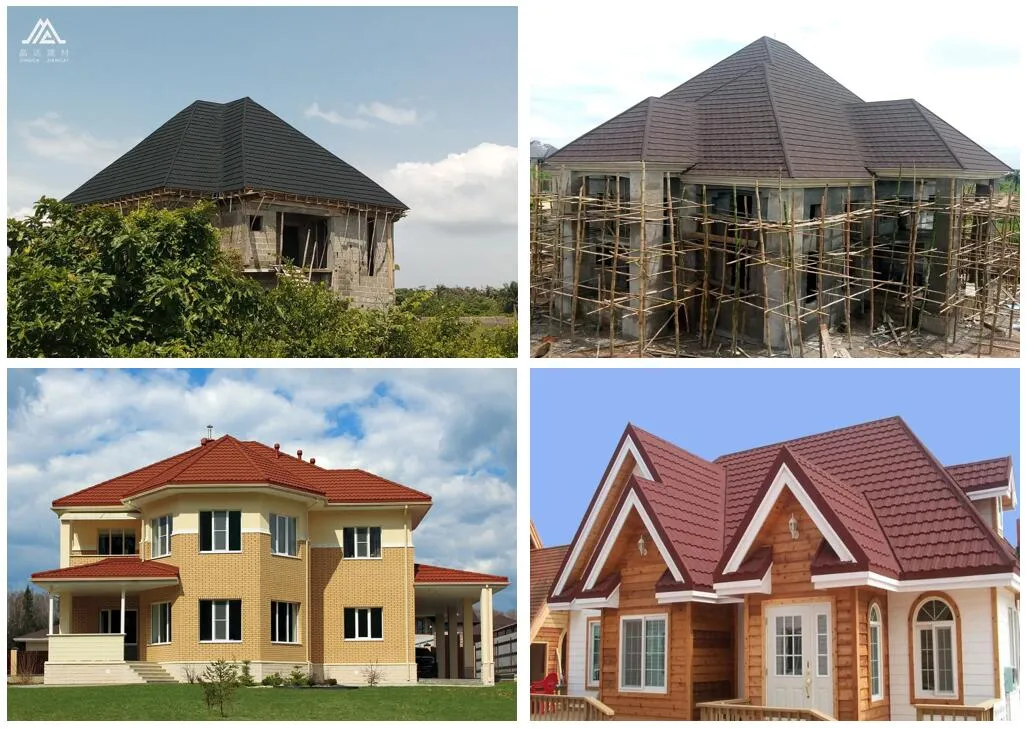

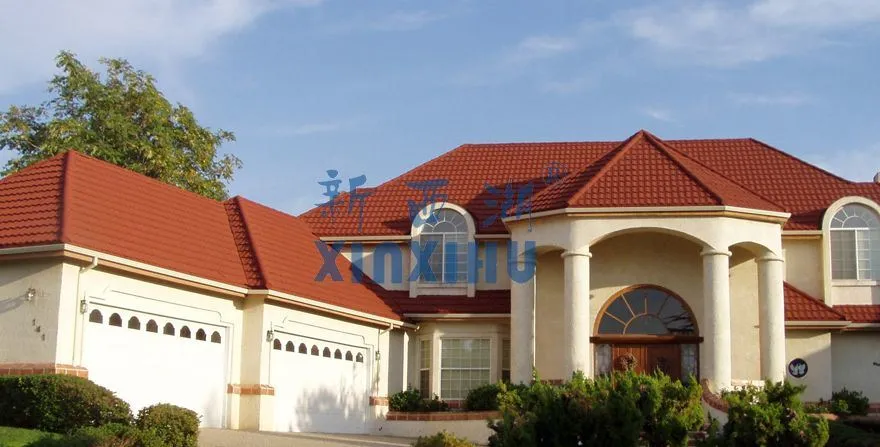

Projects Cases:

Exhibitions:

1340*420mm Milano Stone Chip Coated Metal Roof Tiles

1. Are you factory?

Yes, we are one of largest roofing manufacturer with 19 years professional expertise on roofing tiles & waterproof products.

2. Where is factory located and how can I visit your factory?
Jingda factory is located in Zhuji, Zhejiang which is adjacent to Hangzhou and Yiwu.
We can pick you up in Hangzhou or Yiwu about one hour.

3. How do I know your quality?
Samples can be sent for quality evaluation, Onsite vedio call, and Cutomers endorse.

4. How to request a sample?
Please specify your detail requests like style, color, Specification etc.
Usually we offer free samples or require minimal sampling cost which subject to different situations.

5. What's your production lead time?
Normally 7-14 days, further confirm for large order.

6.Can you process urgent orders?
We can offer rush order service within 7 days shipment based on our strong capacity and organization ability.

7. Can you accept small quantity?
Yes, we can. Our MOQ is flexible to meet different quantity needs.

8. Can you make products from our designs?
Yes, we do OEM and ODM.

9. What's your regular payment terms:
T/T, LC or others negotiable

10. What's the benefit for long term importers or distributors?
For regular customers, we offer great discount, free sample delivery, free sampling for custom designs, packagings etc.

11. How about the warranty for your products?
50 years for Color stone coated metal tiles.

12. Can you give best reasons to buy roofing products from Jingda company?
With over 19 years' rich experience and most advanced newly launched production facilities, we aim to offer top quality roofing products in China.
We have fully confidence Jingda will be your optimal business partners!

Welcome to visit Jingda company for on-site evaluation!
