Product Description

Product Overview

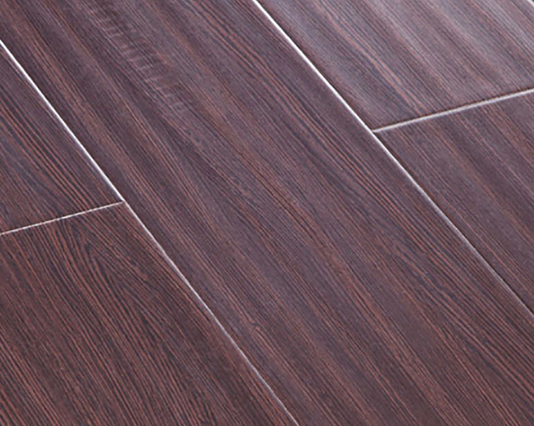

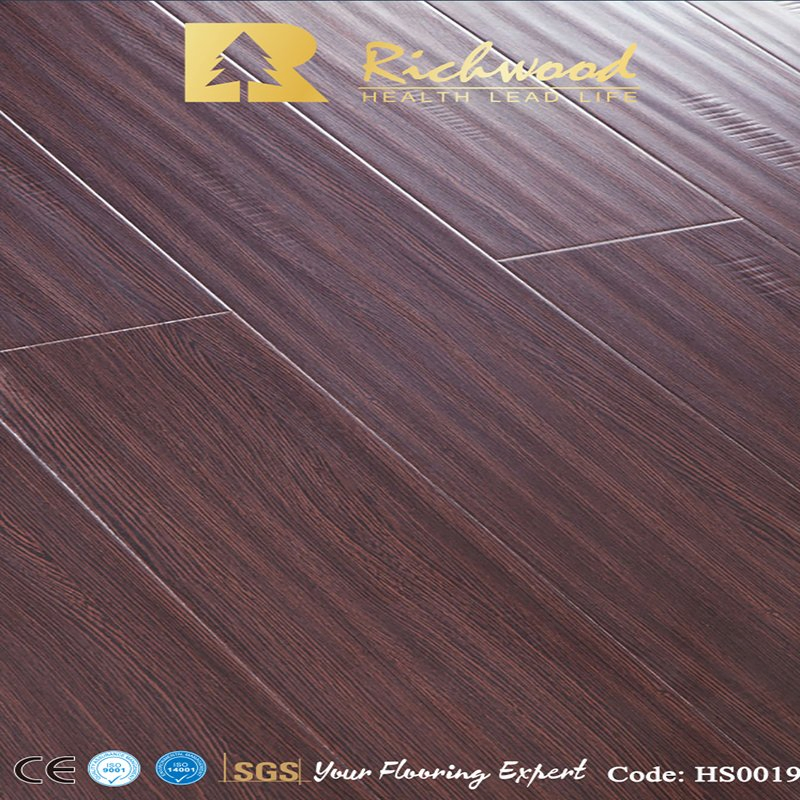

With gorgeous clear waving texture, the handscraped surface is full of dynamic, as if had experienced years of baptism but still remain elegance and noble, giving your floor a unique and remarkable appearance. With natural transition handscraped surface, the whole room shows archaic gorgeous and classical artistic effects through the light scattering. Handscraped Vinyl Plank Laminated Laminate Wood Wooden Flooring

Handscraped Vinyl Plank Laminated Laminate Wood Wooden Flooring

Dimension

Length	1215mm		Construction	High Density Fiberboard (HDF)
Width	145mm	165mm	Variable Length	No
Thickness	8mm	11mm	Variable Width	No
Thickness	10mm	12mm	Variable Width	No

More Details

Color Code	HS0019		Surface Texture	Handscrpaed, Wave surface
Color/Finish Family	Black		Gloss Level	Medium-Gloss
Shade	Medium		Edge Type	Pressed edge (Rolled edge)
Species	Wenge		AC Rating	AC3
				AC4
Style	Wood Look		Exclusive	No
Plank Vishal	1-Strip		Underpad Attached	Depend on buyers
Pattern Repeat Frequency	W: 165mm	every 7planks	Standard	EN13329


	W:145mm	every 8planks		GB/T18102-2007

Installation

Indoor/ Outdoor	Indoor	Installation	Glueless, Click-lock system
Recommanded Usage	Residential	Subfloor Type	Plywood or Concrete
Recommanded Usage	Commercial	Subfloor Type	Plywood or Concrete
Installation Level	Above/On/Below	Installation Method	Float
Underlayment Required	Yes	For Use on Walls	Yes
Country of Origin	P.R.CHINA	Warranty	100% Quality Guarantee

Handscraped Vinyl Plank Laminated Laminate Wood Wooden Flooring

Technical Data for Richwood laminate flooring
Characteristics	Test Standard	Unit	Standard or Rating
HDF density	GB/T18102-2007	KG/M3	≥850
Class 23	EN13329		general residential use in living rooms and dining rooms
Class 31	EN13329		more varied locations, such as small offices and other light commercial location
Class 32	EN13329		higher traffic commercial areas such as boutiques, busier offices, and restaurant
Abrasion resistance	EN13329,Annex E	R	AC3≥2000
Abrasion resistance	EN13329,Annex E	R	AC4≥4000
Formaldehyde E1	EN717-1	MG/M3	0.124
Length Tolerance	EN13329, Annex A	MM	≤0.5
Width Tolerance		MM	≤0.2
Thickness Tolerance		MM	≤0.5
Squareness of the element		MM	≤0.2
Straightness of the surface layer		MM/M	≤0.3
Flatness of the element		%	f w, concave ≤ 0,15 % f l, concave ≤ 0,50 %
Openings between elements(mm)	EN13329, Annex B	MM	average ≤ 0.15
Openings between elements(mm)		MM	max ≤ 0.20
Height difference between elements(mm)		MM	average ≤ 0.10
Height difference between elements(mm)		MM	max ≤ 0.15
Dimensional variations after changes in relative humidity	EN13329,Annex C	MM	≤0.9mm
Light fastness	EN ISO105-B02		Blue wool scale ≥6
Light fastness	EN 20105-A02		Gery scale ≥4
Static indentation	EN433	MM	No visible change
Surface soundness	EN13329,Annex D	N/MM2	≥100
Impact Resistance	EN13329,Annex F	MM	IC2
Resistance to staining	EN438		5, No visible changes
Resistance to cigarette burns	EN438		4
Effect of a furniture leg	EN424		No visible changes
Effect of a castor chair	EN425		No visible changes
Thickness Swelling rate(%)	EN13329,Annex G	%	≤18
Slip resistance	EN14041		DS

Handscraped Vinyl Plank Laminated Laminate Wood Wooden Flooring

Quality Guarantee

• ISO9001 Quality Control System
• Professional internal product and QC team
• Pre-inspection for all raw materials
• Mid-inspection during production from every process
• Final inspection by CIQ's laboratory or ourselves
• The customer's inspection is also acceptable.
• If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers.

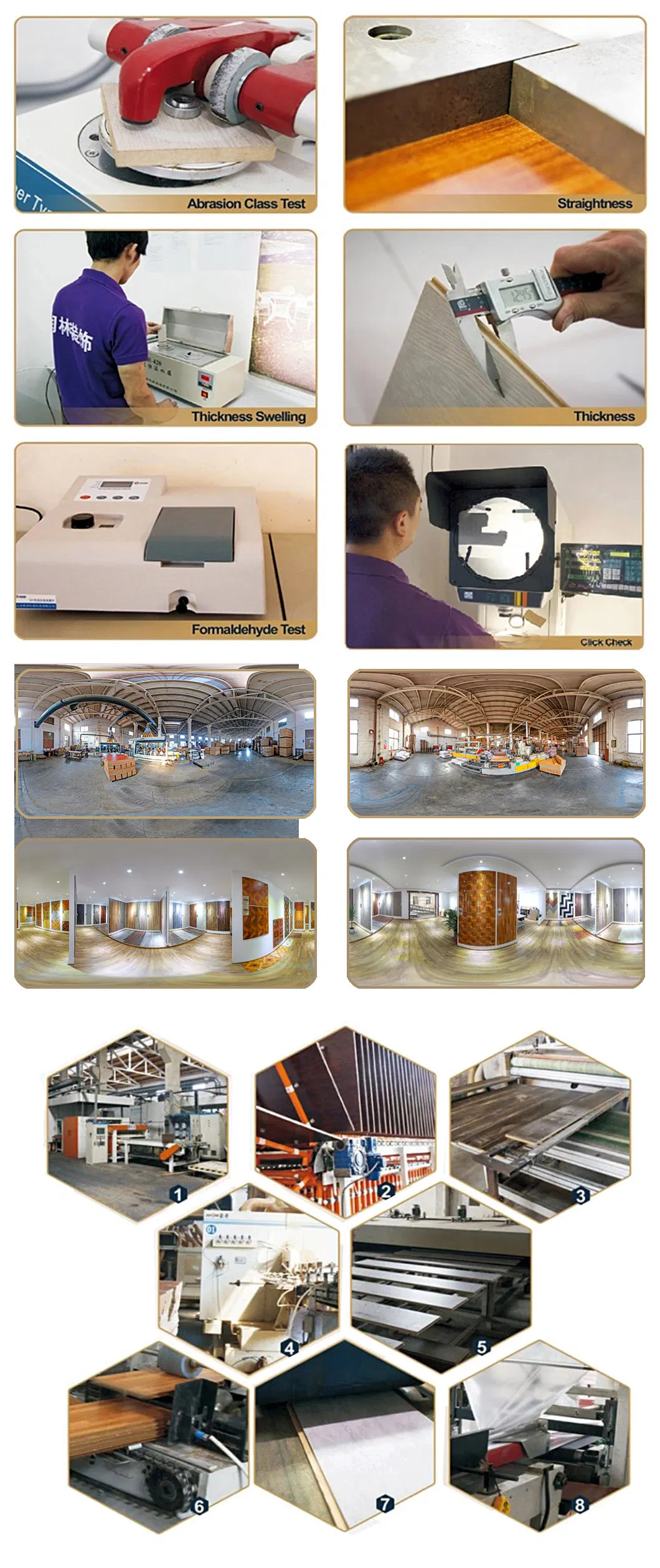

Production Process
Equipment
1.Impregnated paper
2.Hot pressing
3.Cutting
4.Profiling
5.V bevel painting
6.Wax coating
7.Eva silence pad
8.Packing

Advantage
Better Quality, Increasing you sales
Our factory is committed to give you the quality you deserve. Using ISO9001 standard& German Technology, we invested a lot in Research & Development. We have a fully equipped lab for quality testing.
• ISO9001 Quality Control System
• Professional internal product and QC team Pre-inspection for all raw materials Mid-inspection during production from every process Final inspection by CIQ's laboratory or ourselves The customer's inspection is also acceptable.
• Third Party Laboratory support: SGS,Intertek...
• Efficient Claim Settlement If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers within 5working days.
Better Service, Saving your cost
• Order Weekly Update
• On-time delivery
• Free sample support
• Free new products samples into container
• Make professional & Special Samples, displays according to customer's requirement
• Develop products (design, size, surface and so on) based on customer's requirement
Better Team, Solving your worries
Positive attitude, professional knowledge, timely communication, responsible action. We are always here for you! • Professional Product Technology Team
• 10 Years Quality Control & Inspection Team
• On-time Communication within 24hours
• Always keep Promise
• Always ready to be your strong backing

Excellent "quality and service" perfectly solve worries for "worldwide customers";
Successful "cooperation and win-win" fully build a strong backing for "business partners"!
Richwood Laminate Flooring,Beyond Your Imagination!
