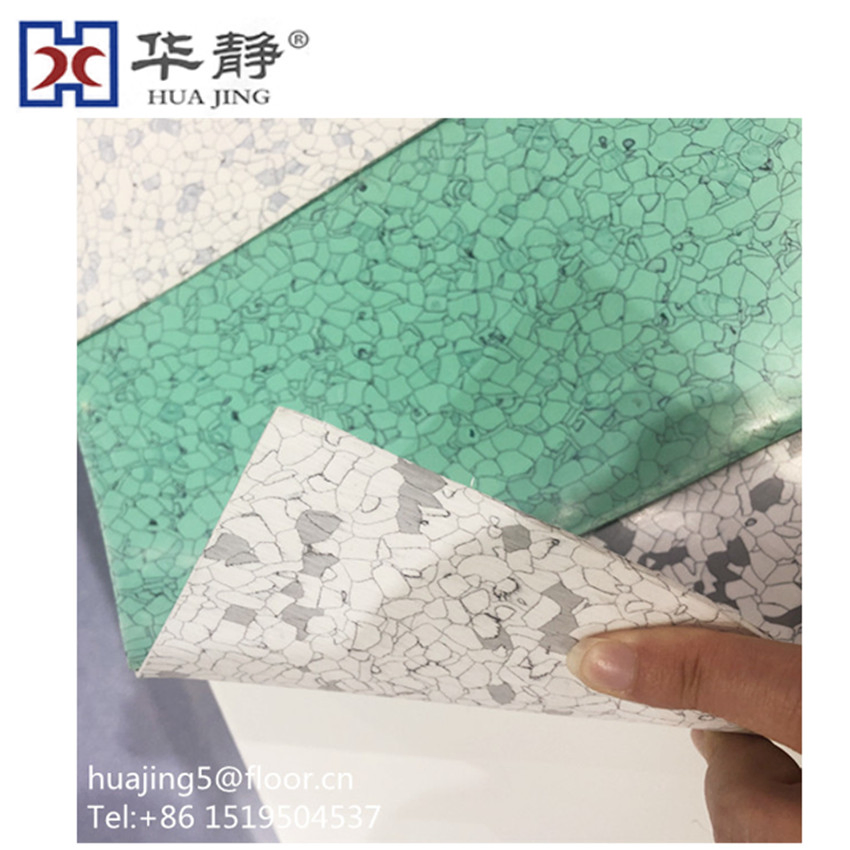

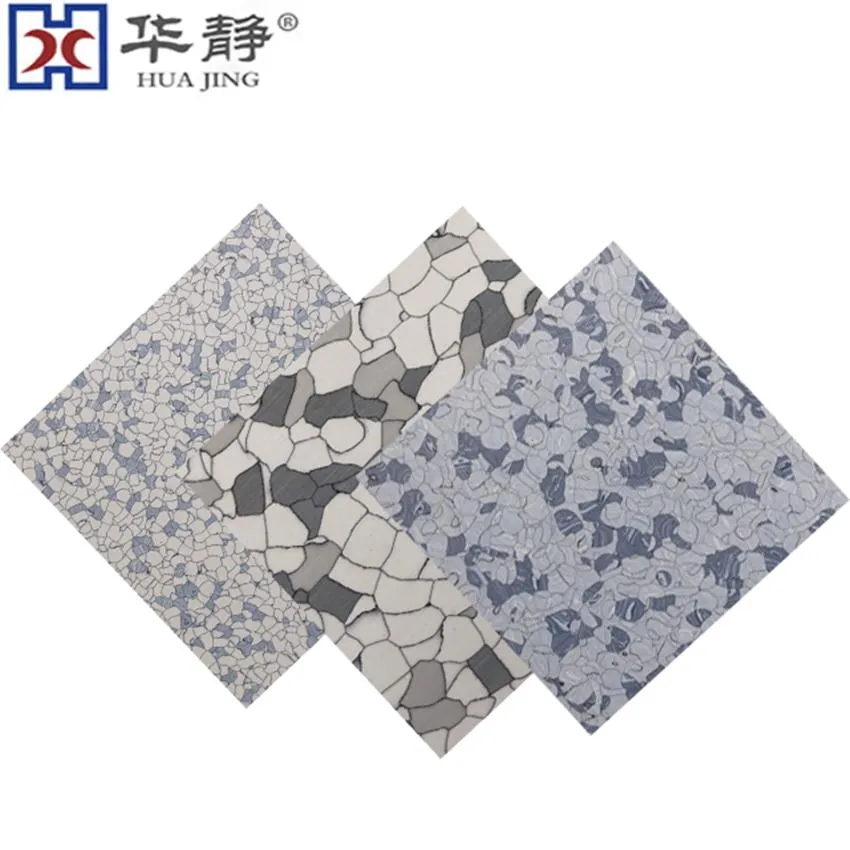

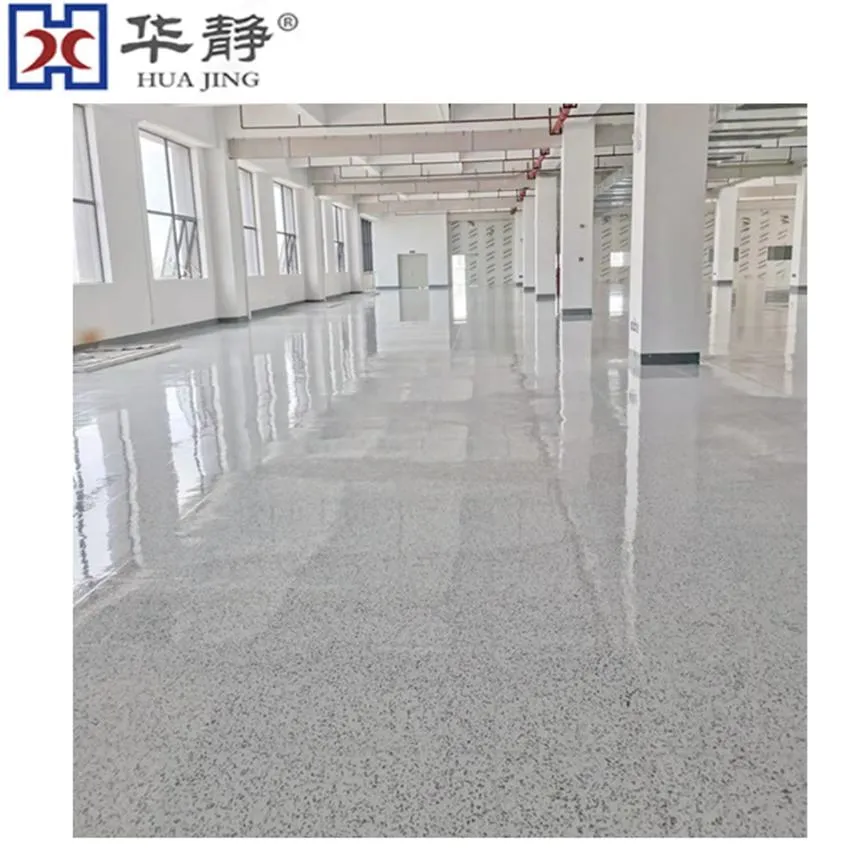

PVC ESD Tile Vinyl Floor for Clean Room
Date sheet:ItemStandardIndexSizeEN426600*600mm610*610mm900*900mmThicknessEN4282.0, 2.5, 3.0mmWeightEN4302.0mm, 3.8kgs/m32.5mm, 4.8/kgs/m33.0mm, 5.8/kgs/m3Surface RresistanceDIN51953ASTMF-1550 or NFPA99104-106 Ω Conductive106-109 Ω DissipativeDecay TimeSJ/T10694-2006(VI<100V)Eq......
Send Inquiry
Product Description
Date sheet:
1)Do you offer samples? Free?
Yes, we offer samples, the small piece of sample is free, the finished items need to be paid.And the freight is paid by customers' side.
2)Can you do printing and design for us?
yes, printing and design are available.
3)Can i visit your factory?
Yes, warmly welcome! Our office is in Jingsu Changzhou, which is about 90-120 minutes by car from Shanghai.
| Item | Standard | Index |
| Size | EN426 | 600*600mm |
| 610*610mm | ||
| 900*900mm | ||
| Thickness | EN428 | 2.0, 2.5, 3.0mm |
| Weight | EN430 | 2.0mm, 3.8kgs/m3 |
| 2.5mm, 4.8/kgs/m3 | ||
| 3.0mm, 5.8/kgs/m3 | ||

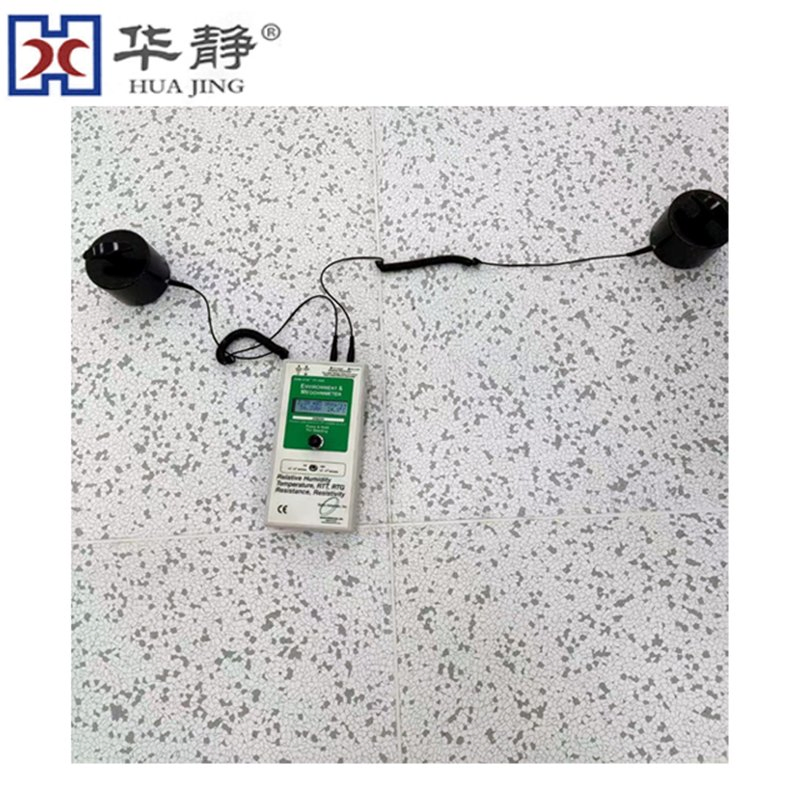

| Surface Rresistance | DIN51953 ASTMF-1550 or NFPA99 | 104-106 Ω Conductive |
| 106-109 Ω Dissipative | ||
| Decay Time | SJ/T10694-2006(VI<100V) | Equal 0.4S |
| Charge Voltage | SJ/T10694-2006(VI<100V) | Equal 70 |
| Fire Resistance | DIN 4102 | B1 |
| Combustion Properties | SJ/T11236-2001(<10s,FV-0) | Equal 0.35s Ifv-0 |
| Amount of anti-wear | SJ/T11236-2001(<=0.02g/cm3, 110r) | Equal 0.014 |
| Anti-wear Properties | EN660pt2 | Ten-T < 2.0 mm3 |
| Wheel Pressure | EN425 | No influence |
| Residual Concavity | EN433, DIN51955 | 0.03mm(2.0mm) |
| 0.035mm(2.5mm) | ||
| 0.04mm(3mm) | ||
| Dimensional stability | EN434 | <=0.1% |
| Color fastness | IDO105BO2 | At least 6 |
| Resistance to chenmicals | DIN423,DIN51958 | offers excellent resistance ask for special sheet |
| Impact sound absorption | VLI, ISO104, ISO717 | Approx 2dB |
| Standard for health care facities | NFPA99 | Comfirm to the requirement of NFPA99 in effect at the line of installation |
1)Do you offer samples? Free? Yes, we offer samples, the small piece of sample is free, the finished items need to be paid.And the freight is paid by customers' side.
2)Can you do printing and design for us?
yes, printing and design are available.
3)Can i visit your factory?
Yes, warmly welcome! Our office is in Jingsu Changzhou, which is about 90-120 minutes by car from Shanghai.
