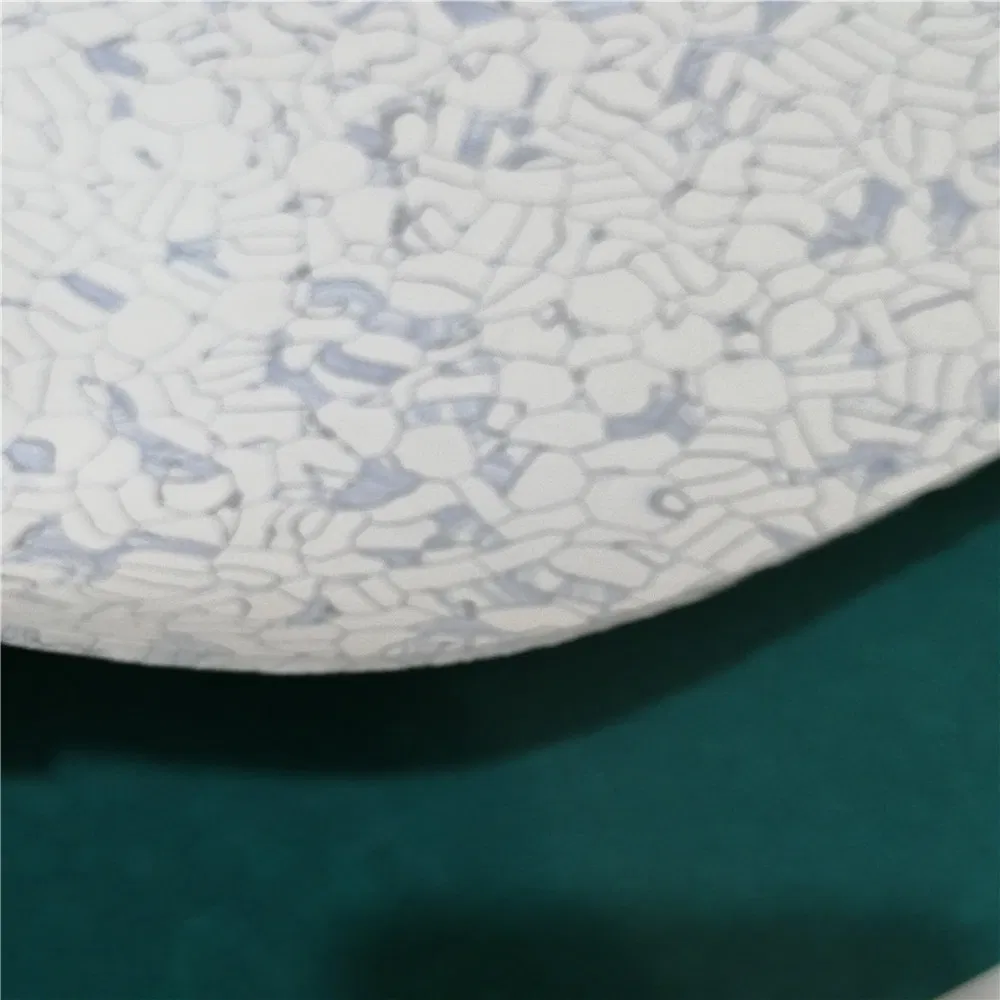

ESD Easy Clean Anti-Static Anti-Slip Plastic Vinyl Tile Factory Flooring
Products Description:Homogeneous Anti-static PVC Roll Floor be made of PVC, plasticizer, stabilizer, coupling reagents and conductive materials, has permanent anti-static function.Surface uses PHPP technology. The full name of "PHPP" is "continous pressure airtight glossy surface trea......
Send Inquiry
Product Description

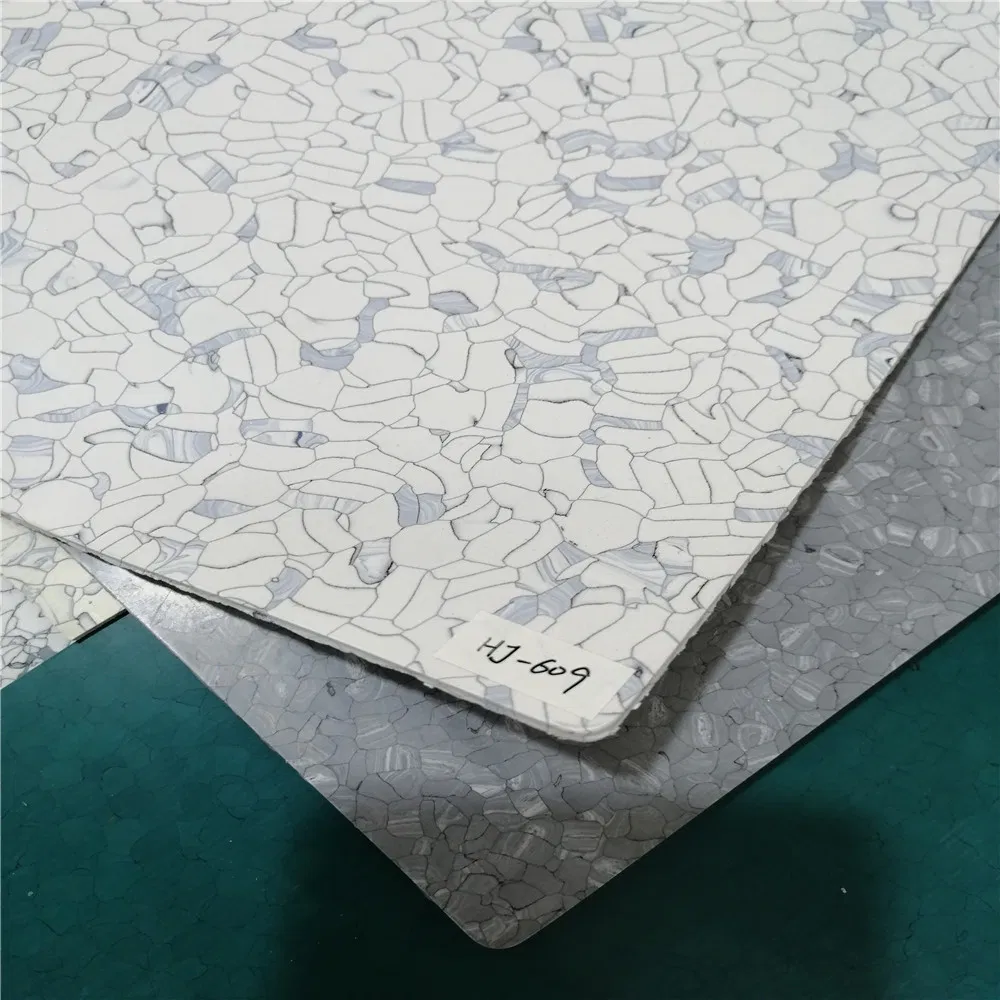

Products Description:
Surface uses PHPP technology. The full name of "PHPP" is "continous pressure airtight glossy surface treatment". It uses the physical method, rolling the flooring in high pressure airtight space to increase its density, sealing the surface pore and adding surface gloosiness and scratch resistance. Thus the floor will be anti-pollution permanetly, easy to maintenance and preventing surface damage, making it more glossy and durable.

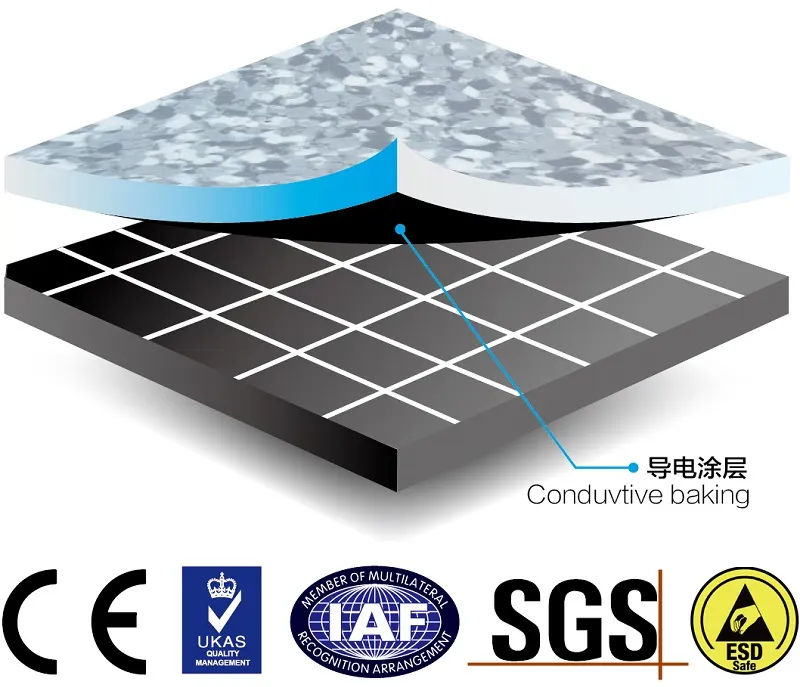

Structure:
Technical Data:
| Item | Conductive Tile | Dissipative Tile |
| Thickness EN428 | 2.0mm 2.5mm 3.0mm | 2.0mm 2.5mm 3.0mm |
| Size En426 | 600 * 600mm 900 * 900mm | 610 * 610mm 900 * 900mm |
| Weight EN430 | 2.0mm:3.8kg/m² 2.5MM:4.8kg/m² 3.0mm:5.8kg/m² | 2.0mm:3.8kg/m² 2.5MM:4.8kg/m² 3.0mm:5.8kg/m² |
| Electric properties DIN51953,ASTMF-1550 or NFPA99 | 2.5*10^4~10^6Ω | 10^6~10^9Ω |
| Decay time SJ/T10694-2006(IVI<100V) | EQUAL 0.4S | EQUAL 0.4S |
| Charge voltage SJ/T10694-2006(IVI<100V) | EQUAL 70 | EQUAL 70 |
| Fire resistance grade DIN 4102 | B1 | B1 |
| Combustion properties SJ/T11236-2001(<10s, reached FV-O grade) | EQUAL 0.35s IFV-0 | EQUAL 0.35s IFV-0 |
| Amount of anti-wear SJ/T11236-2001(≤0.020g/cm²,100r) | EQUAL 0.014 | EQUAL 0.014 |
| Anti-wear Properties EN660pt | ITEN-T<2.0mm³ | ITEN-T<2.0mm³ |
| Wheel pressure EN425 | No influence | No influence |
| Residual concavity EN433,DIN51955 | 0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm) | 0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm) |
| Demensional stability EN 434 | ≤0.10% | ≤0.10% |
| Color fastness IDO105BO2 | At least 6 | At least 6 |
| Resistance to chenmicals DIN423,DIN51958 | Offers excellent resistance ask for special sheet | Offers excellent resistance ask for special sheet |
| Impact sound absorption VLI,ISO104,ISO717 | Approx 2dB | Approx 2dB |
| Standard for health care facilties NFP A99 | Confirms to the requirement of NFPA99 in effect at the tine of installation |
Advantage:
(1) Products Property
Karmeen Anti-static PVC Vinyl Floor, permanent anti-static property. The products are widely used in the place of precise instrument and professional equipment, including electronics, clean room, computer room, hospital, telecommunication, airspace, etc.
(2) Environmentally-friendly Materials
Comply with ISO14001, using European advanced production technology. Insure the raw materials and production meet European standard.
(3) Durable
Anti-static Vinyl Flooring has excellent stability and wear resistance, meet the usage of all kind of public huge traffic site, durable, perfect stress resistance and wear resistance.

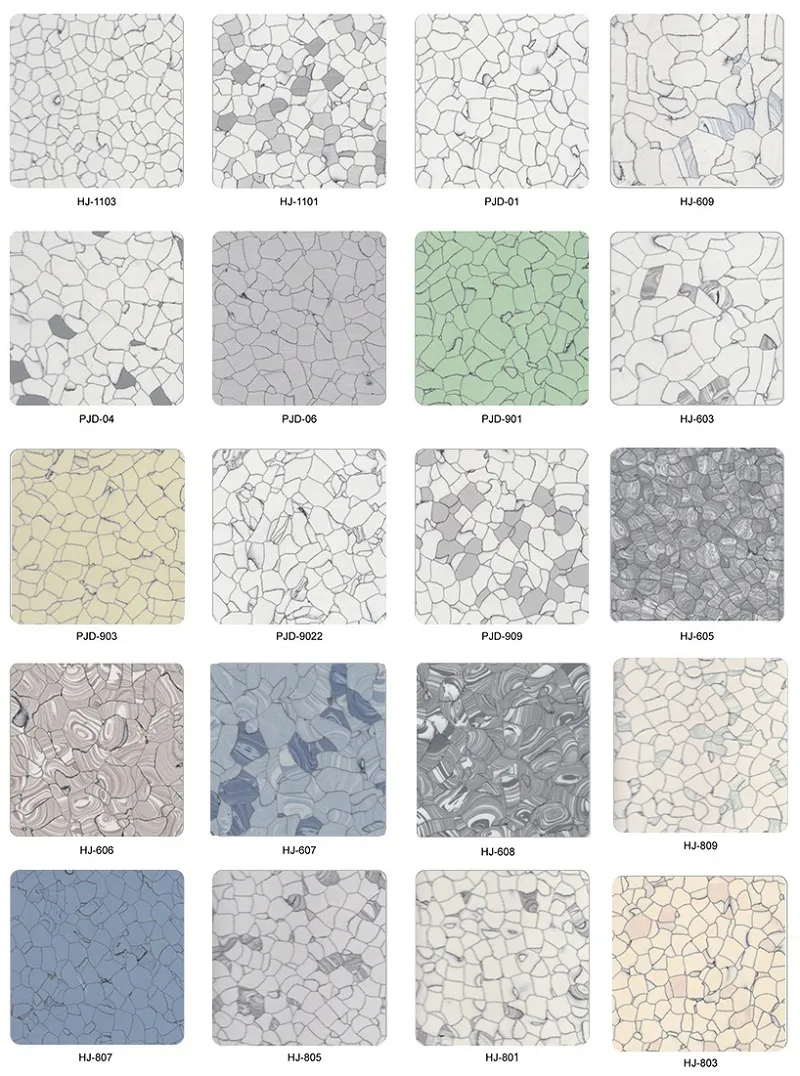

Color Design:

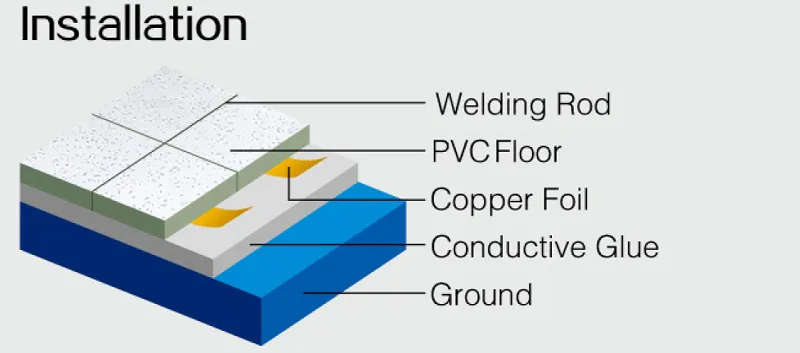

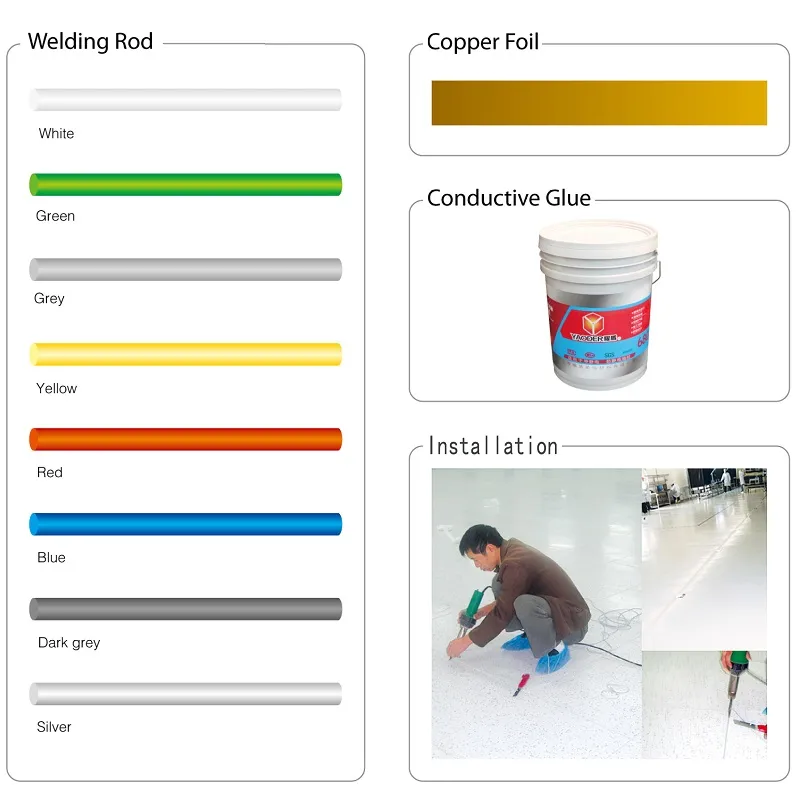

Installation:
Karmeen Conductive tile and Static-Dissipative tile should be installed on sub floors that are leveled, smooth and free of cracks. Residual humidity should be under 2.5% tested with the CM Dumb test. Tiles Floor, adhesive and installation site should reach a temperature of at least 18ºC at least 24 hours before installation. and paste the tiles with qualified conductive glue below 105 Ohm. For futher details on installation methods, please ask us.
Maintenance:
Because Karmeen floor is unpermeable, the surface dirty is easy to clean.
Avoid sharp scratches on the floor by hard object, and maintain a smooth surface.
Cleaning the floor by neutral detergent, dry after washing, then coated with anti-static wax.
Serious dirty or spots can be used to clean the floor cleaning machine.

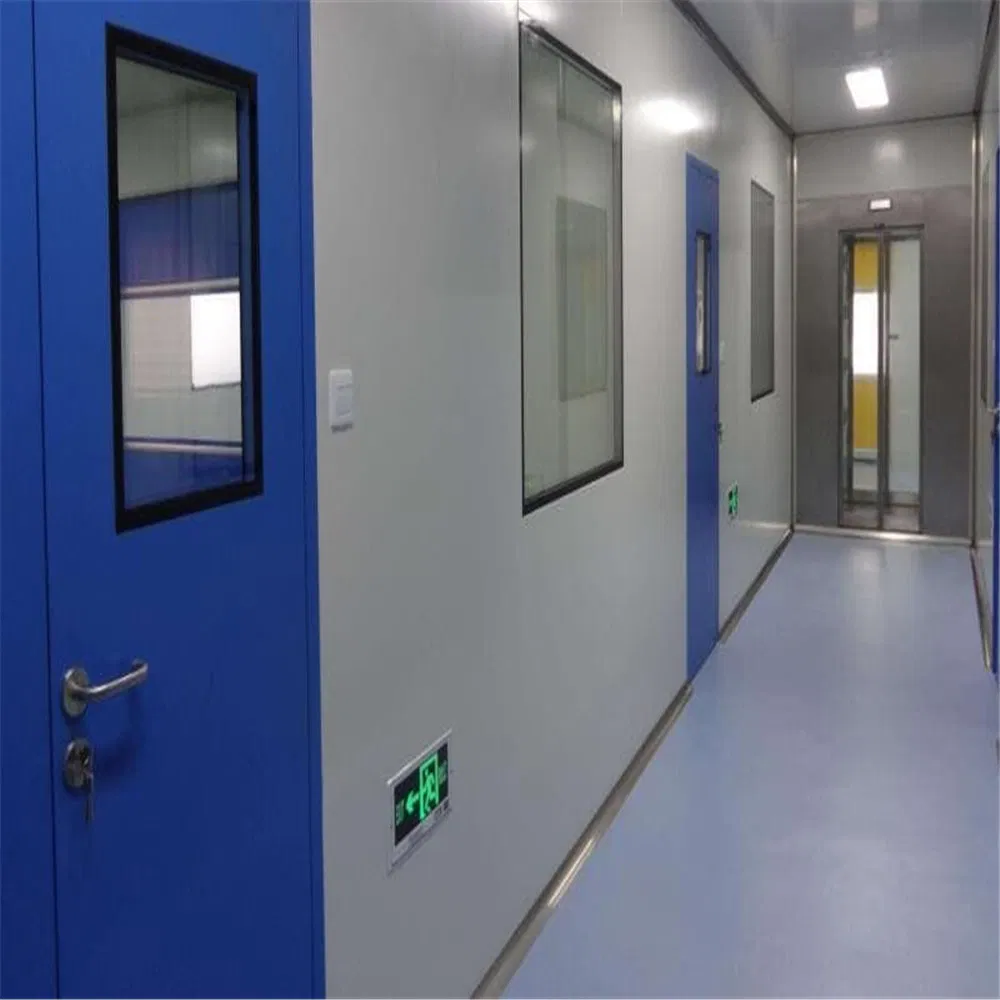

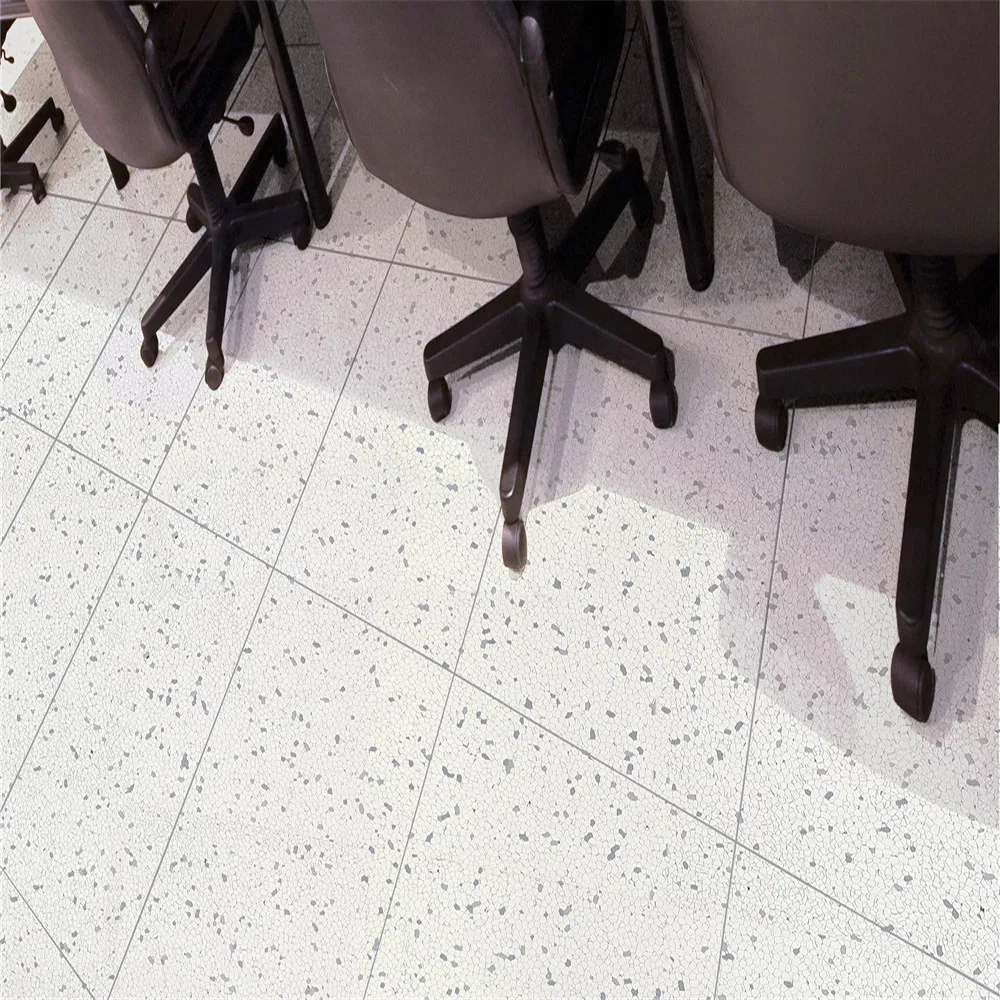

Application:
Widely applied to electronics, microelectronics, telecommunications, network floor, clean room, computer room and other precision instrument and room for equipment operation.
Warranty:
The produces conductive properties have been tested before out of the factory, in compliance with quality standards.
The sales representatives can also provides technical guidance or support in the job site.
Whithin 1 year from purchase, no product defects in the materials and technology. Compliance with Karmeen regulations for the installation and maintenance. Karmeen gives 10-year guarantee (except for human reasons).
Above guarantee replace any other assurances, including, but not limit to, any guarrantee implied in the business feasibility or special purpose.

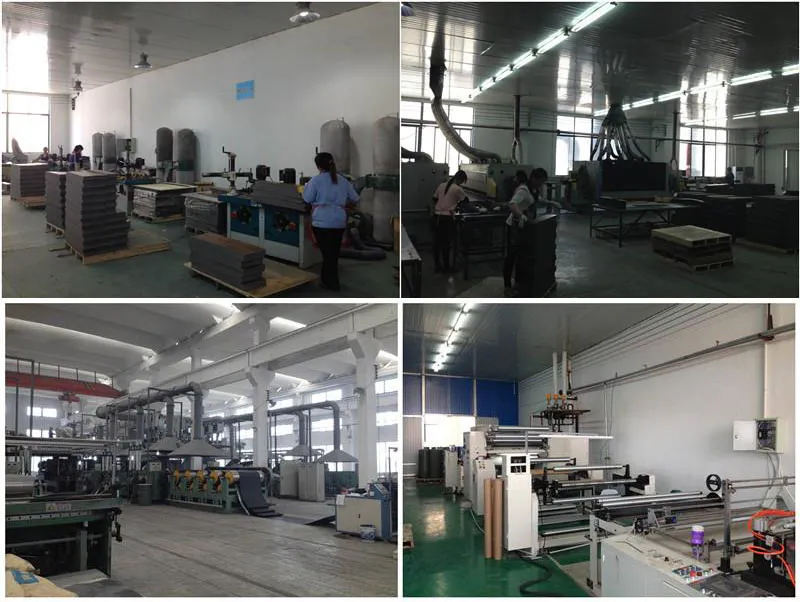

Factory:
Karmeen Group was founded in 2003, we specializing in Homogeneous, Heterogeneous, Quickfix floor, Wall Panel, LVT, SPC Click Flooring, Loose Lay, Dry Back, WPC and New Decorative Materials with 2 manufacturing quarters located in Shanghai and Zhejiang Province. Prized with "Shanghai High-Tech Enterprise" and "Shanghai Famous Brand", Participated in establishing national PVC floor standard. We have 135 dealers in China. Our products has been exported to more than 50 countries and regions all over the world. Turnover at 150 million USD per year.
Exhibition:
Certificate and Test Report:
Why Choose Us?
· Very Quick Lead Time. 7-25 days. We keep stock for our regular products.
· Quality and Cost Control. We produce all semi-finish products in our own factory, including wear layer, printing layer.
· Customized Colors and Size.
· OEM / ODM available.
· ISO 9001, ISO 14001, CE, EN, SGS, Floorscore certified.
· Having 135 dealers in China. Exported to more than 30 countries.
